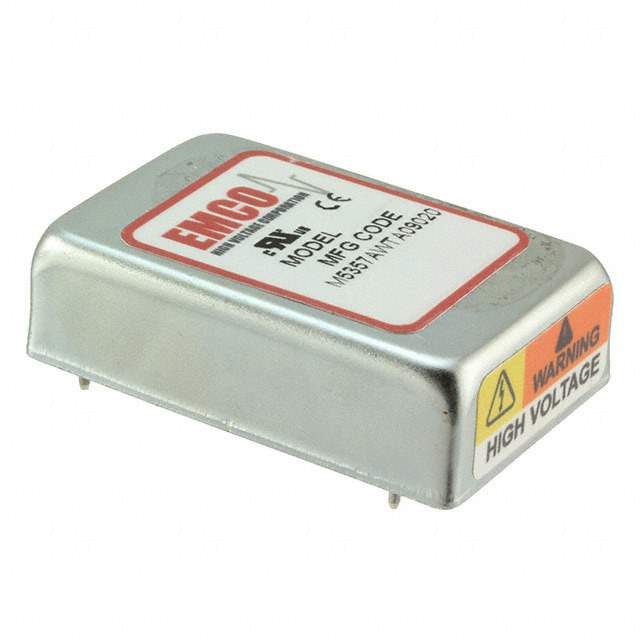

Same model may have multiple batches, images only for reference.

CA20P-5

Name: CA20P-5
Brand: XP Power
SKU: 1349614
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CA20P-5
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 2000V 1W / High Voltage - Non-Isolated Module DC DC Converter 1 Output 2000V 500µA 4.75V - 5.25V Input
Datasheet	CA20P-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	XP EMCO - CA (1W)
Package	Box
Type	High Voltage - Non-Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	2000V
Current - Output (Max)	500µA
Power (Watts)	1 W
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-10°C ~ 50°C
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.75" L x 1.10" W x 0.50" H (44.5mm x 27.9mm x 12.7mm)
Standard Number	62368-1
Base Product Number	CA20P
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349614-CA20P-5
Ultra Librarian 3D Model	Ultra Librarian CA20P-5 CAD Model

Alternative Products

Description

The XP EMCO - CA (1W) is a high voltage non-isolated module that features SCP. Bold the product name (e.g., BAV99S,135 → CA (1W)) and manufacturer (e.g., Nexperia USA Inc. → XP EMCO).

Feature: SCP
Type: High Voltage, Non-Isolated
Function: Power Supply, Board Mount, DC-DC Converter
Power Output: 1W
Maximum Output Current: 500μA
Input Voltage: 4.75V to 5.25V
Output Voltage: 2000V
Mounting Type: Through Hole
Package: 8-DIP Module
Application: ITE (Commercial)
Operating Temperature Range: -10°C to 50°C
