Same model may have multiple batches, images only for reference.

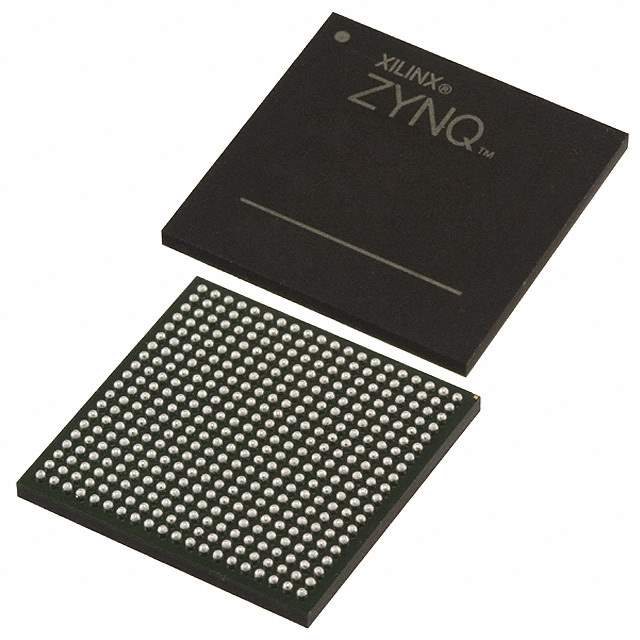

XC7Z014S-1CLG400I Real Image
Same model may have multiple batches, images only for reference.

XC7Z014S-1CLG400I

Part No XC7Z014S-1CLG400I
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 667MHZ 400BGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 65K Logic Cells 667MHz 400-CSPBGA (17x17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 667MHz
Primary Attributes Artix™-7 FPGA, 65K Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 400-LFBGA, CSPBGA
Supplier Device Package 400-CSPBGA (17x17)
Number of I/O 125
Base Product Number XC7Z014
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2003
Standard Package 90
Win Source Part Number 1323123-XC7Z014S-1CLG400I
Ultra Librarian 3D Model Ultra Librarian XC7Z014S-1CLG400I CAD Model

Description

The AMD Xilinx XC7Z014S-1CLG400I is an Artix-7 FPGA with 65K logic cells and a single ARM Cortex-A9 MPCore™ with CoreSight™.

  • Speed: 667MHz
  • Temperature Range: -40°C to 100°C (TJ)
  • I/Os: 125
  • RAM Size: 256KB
  • Flash Size: No flash size
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, and UART/USART, as well as USB OTG
  • Peripherals: DMA
  • Package: 400-CSPBGA (17x17)
