Same model may have multiple batches, images only for reference.

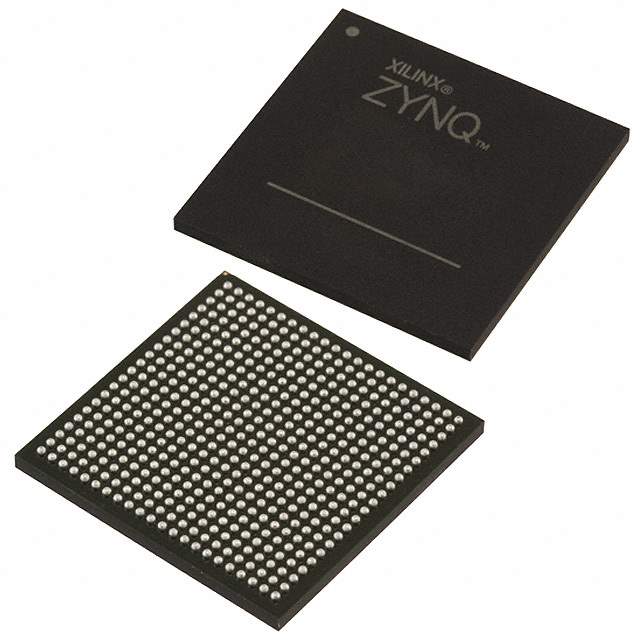

XC7Z012S-1CLG485I Real Image
Same model may have multiple batches, images only for reference.

XC7Z012S-1CLG485I

Part No XC7Z012S-1CLG485I
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 667MHZ 485CSBGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 55K Logic Cells 667MHz 485-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 667MHz
Primary Attributes Artix™-7 FPGA, 55K Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 485-LFBGA, CSPBGA
Supplier Device Package 485-CSPBGA (19x19)
Number of I/O 150
Base Product Number XC7Z012
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2001
Standard Package 84
Win Source Part Number 1316618-XC7Z012S-1CLG485I
Ultra Librarian 3D Model Ultra Librarian XC7Z012S-1CLG485I CAD Model

Description

The AMD Xilinx XC7Z012S-1CLG485I is an Integrated Circuit (IC) belonging to the Embedded - System On Chip (SoC) family. in the open market.

  • Processor: single ARM Cortex-A9 MPCore with CoreSight processor @ 667MHz
  • Number of I/Os: 150
  • RAM Size: 256KB
  • Standard Packages: 84
  • Applications: automotive and industrial systems
  • Connectivity Options: CANbus, Ethernet, and USB OTG
  • RoHS: compliant with RoHS3 standards
