Same model may have multiple batches, images only for reference.

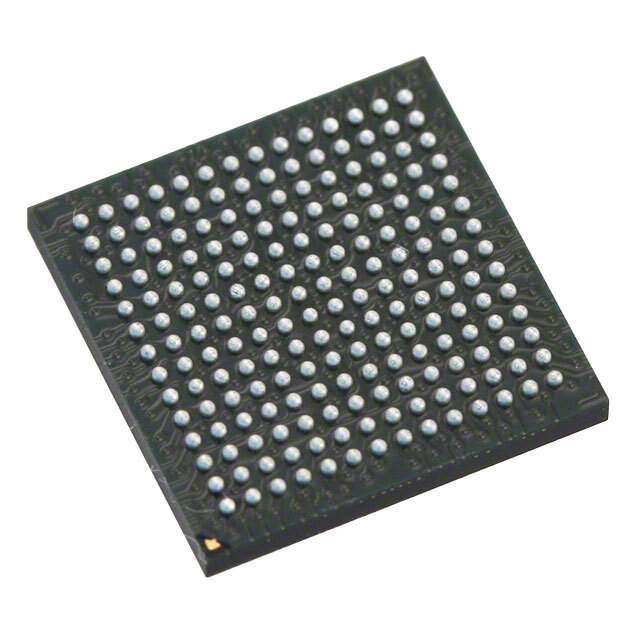

XC7S15-1CPGA196C Real Image
Same model may have multiple batches, images only for reference.

XC7S15-1CPGA196C

Part No XC7S15-1CPGA196C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 100 I/O 196CSBGA / Spartan®-7 Field Programmable Gate Array (FPGA) IC 100 368640 12800 196-TFBGA, CSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer AMD Xilinx
Packaging Tray
Number of LABs/CLBs 1000
Number of Logic Elements/Cells 12800
Total RAM Bits 368640
Number of I/O 100
Voltage - Supply 0.95V ~ 1.05V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 196-TFBGA, CSBGA
Supplier Device Package 196-CSPBGA (8x8)
Base Product Number XC7S15
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 122-2222
Standard Package 1
Win Source Part Number 1323258-XC7S15-1CPGA196C
Ultra Librarian 3D Model Ultra Librarian XC7S15-1CPGA196C CAD Model

Description

The AMD Xilinx XC7S15-1CPGA196C is an FPGA manufactured by AMD Xilinx.

  • Device Category: Embedded IC, Field Programmable Gate Arrays
  • Mounting: Surface mountable
  • Package: 196-CSPBGA
  • I/O: 100
  • LABs/CLBs: 1000
  • Logic Elements/Cells: 12800
  • Total RAM bits: 368640
  • Voltage Supply: 0.95V to 1.05V
  • Operating Temperature: 0°C to 85°C (TJ)
  • ROHS3 Compliance: ROHS3 compliant
  • MSL Level: 3 (168 hours)
