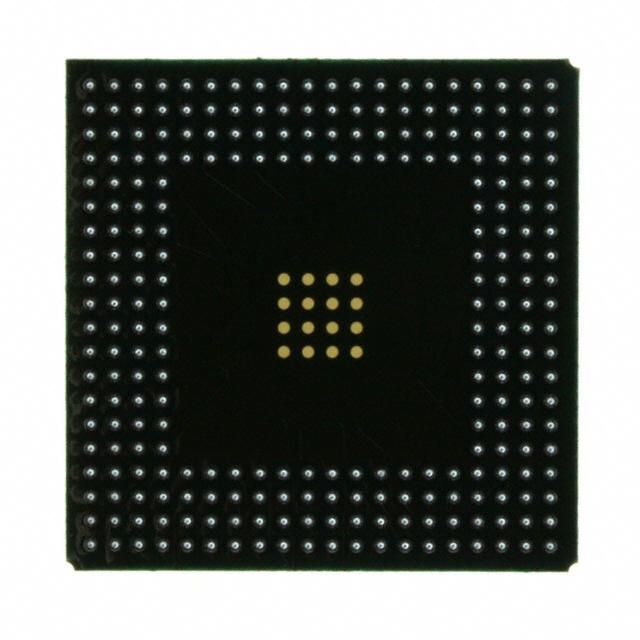

The XCS40XL-4BGG256C is a Field Programmable Gate Array (FPGA) from Xilinx's Spartan-XL family. This FPGA is designed for applications requiring more complex logic and higher performance compared to the XCS30XL series. The XCS40XL-4BGG256C provides a flexible, cost-effective solution for a wide range of digital logic applications. The BGG256 package indicates a 256-ball Ball Grid Array (BGA) package.

Applications:

• Advanced digital signal processing (DSP) applications
• High-performance embedded control systems
• Complex networking and communications equipment
• High-speed data acquisition systems
• Advanced image processing applications
• Complex custom logic solutions
• Prototyping for advanced ASIC designs

Features:

• System Performance: Offers enhanced performance for cost-sensitive applications, higher than the XCS30XL.
• On-Chip RAM: Includes block RAM for data storage and manipulation.
• Flexible I/O: Provides a large number of programmable I/O pins for interfacing with external devices.
• In-System Programmability: Can be reprogrammed in the field, allowing for design updates and modifications.
• Low Power Consumption: Designed for low power operation, suitable for battery-powered devices.
• Advanced Packaging: Available in a 256-ball BGA package, offering high pin count and improved thermal performance.
• Clock Management: Features digital clock managers (DCMs) for clock synthesis and management.

Benefits:

• Reduced Time-to-Market: Enables rapid prototyping and development of digital systems.
• Design Flexibility: Allows for easy modification and customization of logic designs.
• Cost-Effectiveness: Provides a cost-effective solution compared to custom ASICs, especially for low to medium volume production.
• High Performance: Delivers higher performance than the XCS30XL for a wider range of applications.
• Easy Integration: Simple to integrate into existing systems due to the flexible I/O and in-system programmability.
• Extended Product Life Cycle: FPGA designs can be easily updated and maintained, extending the product life cycle.
• Improved Thermal Performance: The BGA package provides improved thermal performance compared to PQFP packages.

Additional Details:

The XCS40XL-4BGG256C operates with a 5V power supply. The ‘-4’ in the part number indicates the speed grade. It is programmed using Xilinx's ISE or Vivado design tools. The device contains Configurable Logic Blocks (CLBs) that allow users to implement complex digital circuits. The Spartan-XL family also includes features like Boundary Scan (JTAG) for testing and debugging. The specific number of logic cells, RAM blocks, and I/O pins can be found in the Xilinx Spartan-XL family datasheet.
