Same model may have multiple batches, images only for reference.

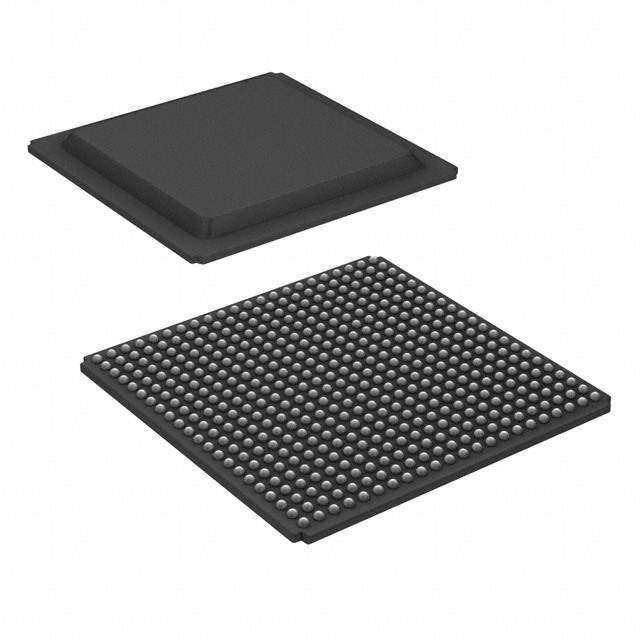

XC3S1400A-5FGG484C Real Image
Same model may have multiple batches, images only for reference.

XC3S1400A-5FGG484C

Part No XC3S1400A-5FGG484C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 375 I/O 484FBGA
Datasheet
XC3S1400A-5FGG484C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3A
Number of LABs/CLBs 2816
Number of Logic Elements/Cells 25344
Total RAM Bits 589824
Number of I/O 375
Number of Gates 1400000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 484-BBGA
Manufacturer Package 484-FBGA (23x23)
Win Source Part Number 712896-XC3S1400A-5FGG484C
Family Name XC3S1400A
Introduction Date December 04, 2006
ECCN 3A991.d
Country of Origin Republic of Korea, Taiwan
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC3S1400A-5FGG484C CAD Model

Description

The XC3S1400A-5FGG484C is a Spartan-3A series Field Programmable Gate Array (FPGA) IC from Xilinx Inc. that operates on a supply voltage range of 1.14 V to 1.26 V.

  • Manufacturer: Xilinx Inc.
  • Series: Spartan-3A
  • Supply Voltage: 1.14 V to 1.26 V
  • I/Os: 375
  • LABs/CLBs: 2816
  • Logic Elements/Cells: 25344
  • Total RAM Bits: 589824
  • Gates: 1400000
  • Package: 484-BBGA
  • Operating Temperature: 0°C to 85°C
  • Popularity: High
  • Supply and Demand Status: Limited
