XC3S1000-4FGG456I

Part No XC3S1000-4FGG456I
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 333 I/O 456FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Status Active
Number of LABs/CLBs 1920
Number of Logic Elements/Cells 17280
Total RAM Bits 442368
Number of I/O 333
Number of Gates 1000000
Supply Voltage - Operating 1.14 V to 1.26 V
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 100°C (TJ)

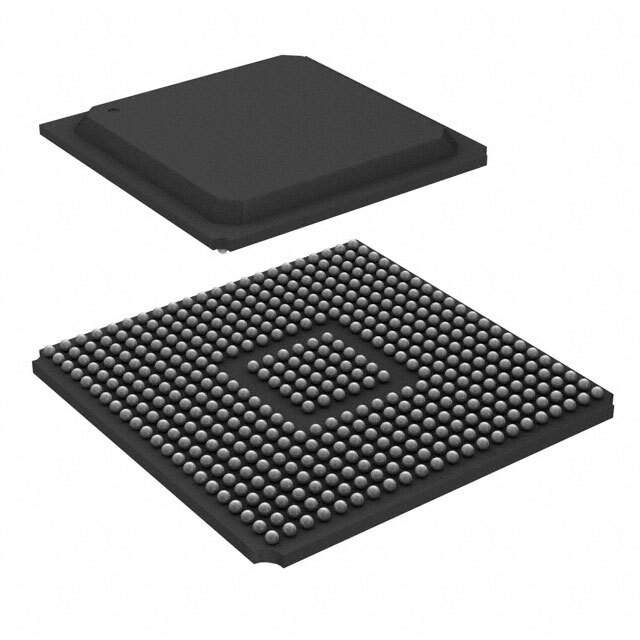

Case / Package 456-FBGA (23x23)
Win Source Part Number 084566-XC3S1000-4FGG456I
Family Name XC3S1000
Introduction Date July 13, 2004
ECCN 3A991.d
Country of Origin Philippines, Republic of Korea, Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XC3S1000-4FGG456I CAD Model

Description

The XC3S1000-4FGG456I is an Integrated Circuit (IC) manufactured by Xilinx Inc.

  • Type: Field Programmable Gate Array (FPGA)
  • Category: Embedded
  • Supply and Demand Status: Balanced
  • Mounting: SMD (SMT)
  • I/Os: 333
  • LABs/CLBs: 1920
  • Logic Elements/Cells: 17280
  • Total RAM bits: 442368
  • Gates: 1000000
  • Family: XC3S1000
  • Market Status: Active
  • Temperature Range: -40°C to 100°C (TJ)
  • Case/Package: 456-FBGA (23x23)
  • Supply Voltage: 1.14 V to 1.26 V
  • Halogen Free: Compliant
