Same model may have multiple batches, images only for reference.

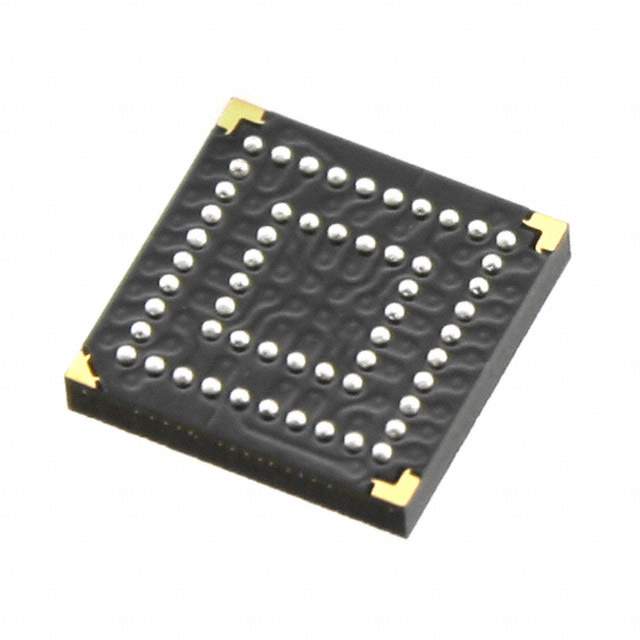

XC2C32A-6CPG56I Real Image
Same model may have multiple batches, images only for reference.

XC2C32A-6CPG56I

Part No XC2C32A-6CPG56I
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 32MC 5.5NS 56CSBGA
Datasheet
XC2C32A-6CPG56I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.5ns
Voltage Supply - Internal 1.7 V to 1.9 V
Number of Logic Elements/Blocks 2
Number of Macrocells 32
Number of Gates 750
Number of I/O 33
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 56-CSBGA (6x6)
Win Source Part Number 057556-XC2C32A-6CPG56I
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC2C32A
Introduction Date September 26, 2001
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian XC2C32A-6CPG56I CAD Model

Description

The XC2C32A-6CPG56I is a programmable integrated circuit developed by Xilinx Inc.

  • Device Type: High-performance In System Programmable
  • Number of I/O: 33
  • Number of Gates: 750
  • Voltage Supply Range: 1.7 V to 1.9 V
  • Delay Time tpd(1) Max: 5.5ns
  • Mounting: 56-CSBGA (6x6) package
  • Application: Integrated Circuits applications
