Same model may have multiple batches, images only for reference.

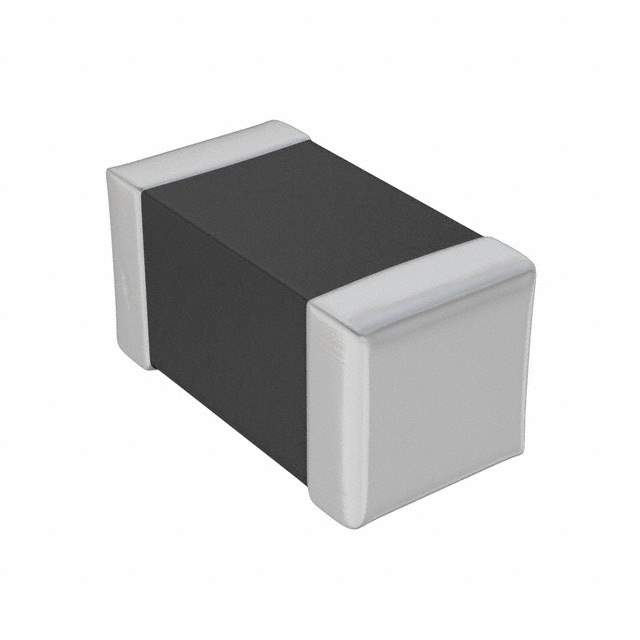

82536040 Real Image
Same model may have multiple batches, images only for reference.

82536040

Part No 82536040
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description VARISTOR 8V 30A 0603
Datasheet
82536040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Wurth Electronics Inc
Package Tape & Reel
Product Status Active
Maximum AC Volts 4 V
Maximum DC Volts 5.5 V
Varistor Voltage (Min) 6.4 V
Varistor Voltage (Typ) 8 V
Varistor Voltage (Max) 9.6 V
Current - Surge 30 A
Energy 0.1J
Number of Circuits 1
Capacitance @ Frequency 200 pF @ 1 MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0603 (1608 Metric)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 850989-82536040
Ultra Librarian 3D Model Ultra Librarian 82536040 CAD Model

Description

The 850989-82536040 is a transient voltage suppressor (TVS) varistor from Wurth Electronics Inc.

  • Packaging: Tape & Reel
  • Capacitance @ Frequency: 200 pF @ 1 MHz
  • Varistor Voltage (Typ): 8V
  • Varistor Voltage (Min): 6.4V
  • Varistor Voltage (Max): 9.6V
  • Surge Current: 30A
  • Voltage AC Max: 4V
  • Voltage DC Max: 5.5V
  • Application: Circuit Protection
