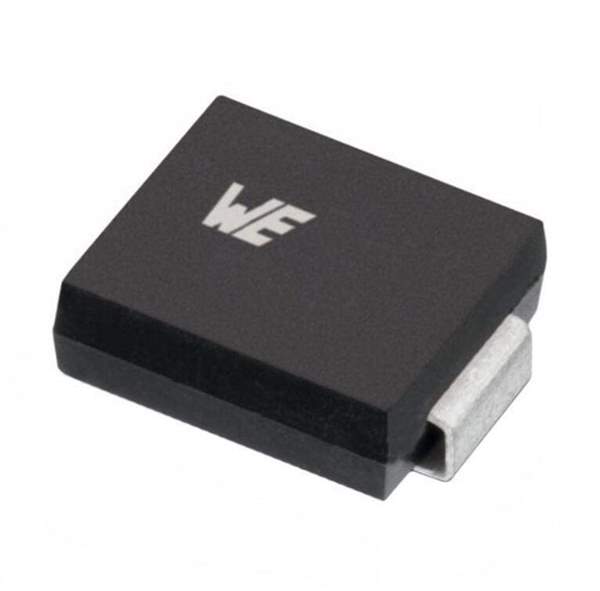

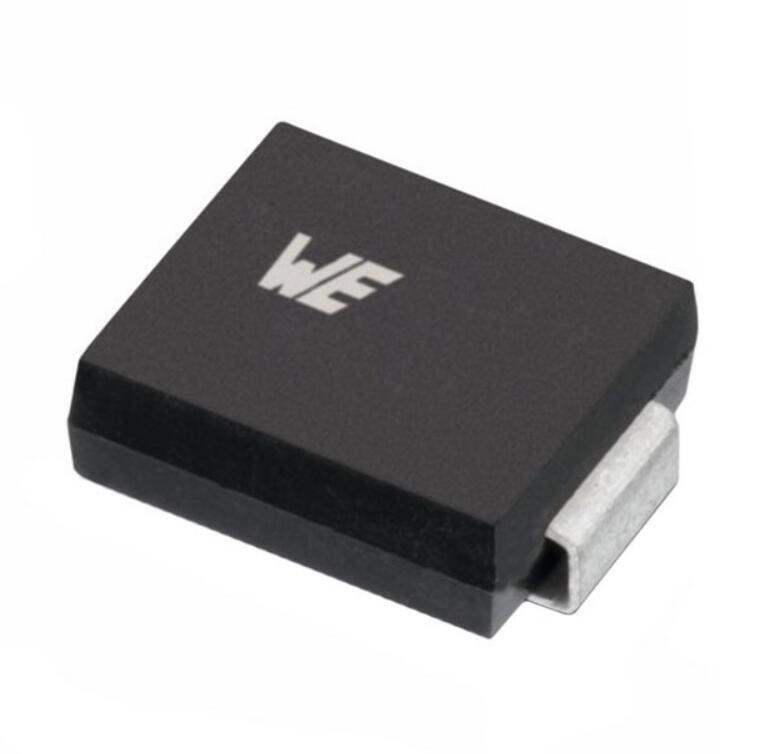

824541361 Würth Elektronik
Same model may have multiple batches, images only for reference.

824541361

Part No 824541361
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC DO214AB
Datasheet
824541361 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201821-824541361
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Series WE-TVSP
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Zener
Voltage - Reverse Standoff (Typ) 36V (Max)
Voltage - Breakdown (Min) 42.1V (Typ)
Voltage - Clamping (Max) @ Ipp 58.1V
Ultra Librarian 3D Model Ultra Librarian 824541361 CAD Model

Description

The WE-TVSP series from Würth Elektronik is a type of transient voltage suppressor (TVS) diode. Bold the product name (e.g., BAV99S,135 → WE-TVSP series) and manufacturer (e.g., Nexperia USA Inc. → Würth Elektronik).

  • Type: Zener Diode
  • Reverse Standoff Voltage: 36V (typical)
  • Breakdown Voltage: 42.1V (minimum)
  • Clamping Voltage: 58.1V @ the peak pulse current (Ipp)
  • Package: Tape and reel (TR) cut tape (CT) packaging, as well as Digi-Reel® packaging
  • Product Status: Active
