Same model may have multiple batches, images only for reference.

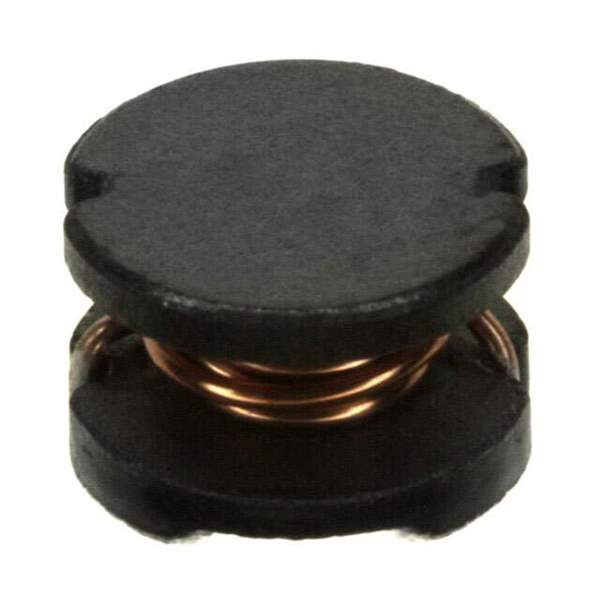

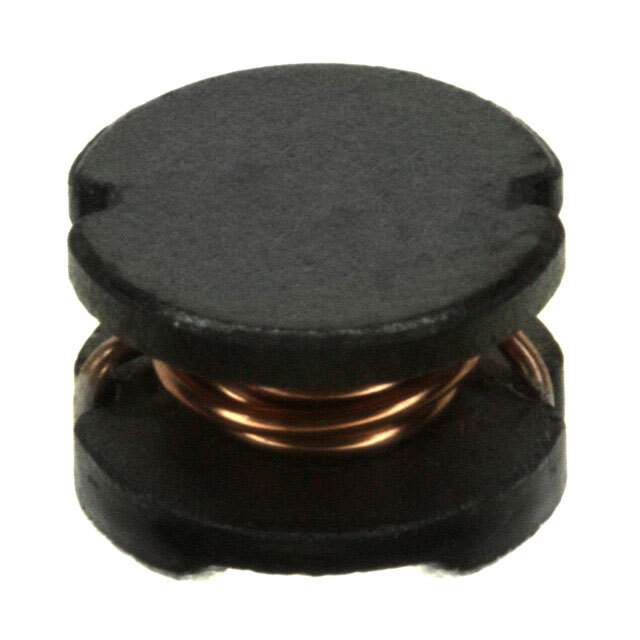

784774047 Real Image
Same model may have multiple batches, images only for reference.

784774047

Part No 784774047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3A 71 MOHM SMD
Datasheet
784774047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 51 Weeks
Features 4.7 µH Unshielded Wirewound Inductor 3 A 71mOhm Max Nonstandard
Manufacturer Wurth Electronics Inc
Series WE-PD2A
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
Case / Package 5848
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-6828-6, 732-6828-2, 732-6828-1
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858229-784774047
Ultra Librarian 3D Model Ultra Librarian 784774047 CAD Model

Description

The WE-PD2A is a 4.7 µH unshielded wirewound inductor manufactured by Wurth Electronics Inc.

  • Series: WE-PD2A
  • Applications: Power Supplies, DC-DC Converters, and Filtering
  • Maximum Current Rating: 3A
  • Maximum Resistance: 71mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Package: Reel-TR
  • Pieces per Package: 1500
  • Estimated Production Lead Time: 51 weeks
