Same model may have multiple batches, images only for reference.

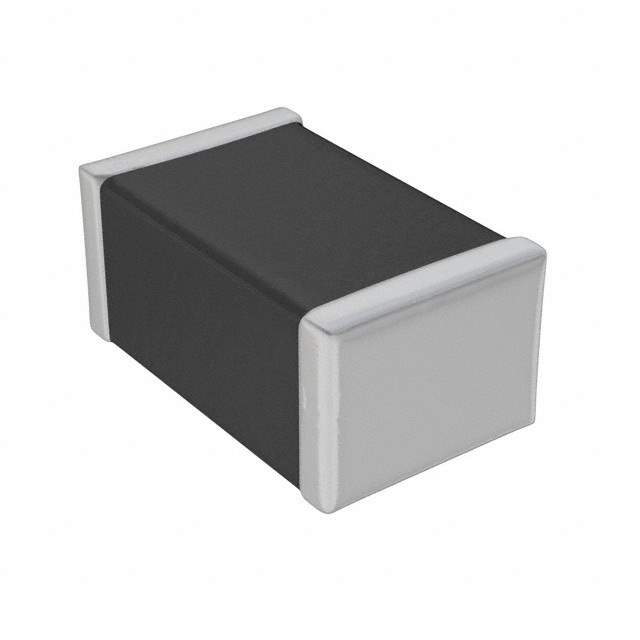

782633601 Real Image
Same model may have multiple batches, images only for reference.

782633601

Part No 782633601
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Datasheet
782633601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Würth Elektronik
Series WE-CBA
Package Tape & Reel
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 200mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Other Names 732-6703-1,732-6703-6,732-6703-2
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1275954-782633601
Ultra Librarian 3D Model Ultra Librarian 782633601 CAD Model

Description

The WE-CBA series from Würth Elektronik is a signal line ferrite bead and chip filter that is designed to suppress noise in electronic circuits.

  • Current Rating: 1A
  • Impedance: 600 Ohms @ 100 MHz
  • AEC-Q200: Compliant
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Standard Package: 4,000 units
  • Package Size: 0603 (1608 Metric)
  • Height: 0.039" (1.00mm)
  • Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
