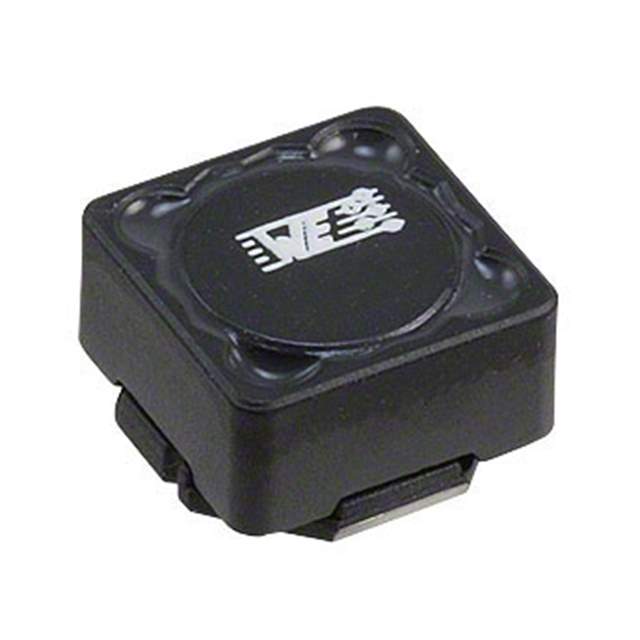

7687714681 Real Image
Same model may have multiple batches, images only for reference.

7687714681

Part No 7687714681
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-PDHV SMD Power Inductor | FIXED IND 680UH 550MA 2.25 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Tape and Reel
Type Wirewound
Inductance 680μH
Tolerance ±20%
Current Rating (Amps) 550mA
Current - Saturation 610mA
Shielding Shielded
DC Resistance (DCR) 2.25Ohm Max
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1133659-7687714681
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7687714681 CAD Model

Description

The Wurth Electronics Inc. 680μH Shielded Wirewound SMD Inductor is a high-quality electronic component that is designed to deliver optimal performance. With a current-saturation of 610mA and a frequency-self resonant of 2MHz, this inductor is perfect for use in various applications.

  • Inductance: 680μH
  • Type: Shielded Wirewound SMD Inductor
  • Current-Saturation: 610mA
  • Frequency-Self Resonant: 2MHz
  • DC Resistance: 2.25 Ohm max
  • Tolerance: ±20%
  • Height: 0.236" (6.00mm)
  • Parts Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Package: Nonstandard 500
