Same model may have multiple batches, images only for reference.

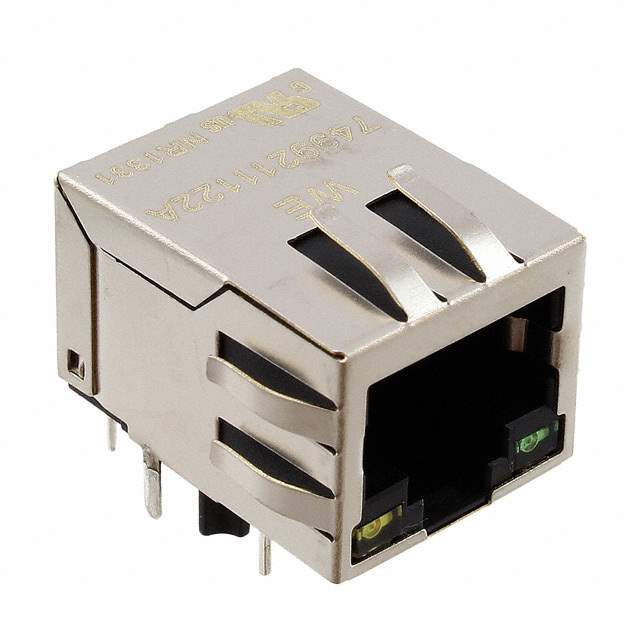

7499211122A Real Image
Same model may have multiple batches, images only for reference.

7499211122A

Part No 7499211122A
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Datasheet
7499211122A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Würth Elektronik
Series WE-RJ45 LAN
Package Tube
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.541" (13.75mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 29
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350598-7499211122A
Ultra Librarian 3D Model Ultra Librarian 7499211122A CAD Model

Description

The Würth Elektronik 1165877 is a modular connector jack with magnetics used for 10/100 Base-T, AutoMDIX, and Power over Ethernet (PoE) applications.

  • Mounting Technology: Through-hole
  • Orientation: 90° angle (right)
  • Shielding: EMI finger
  • Shield Material: Copper alloy
  • Temperature Range: 0°C to 70°C
  • ECCN: EAR99 compliant
