Same model may have multiple batches, images only for reference.

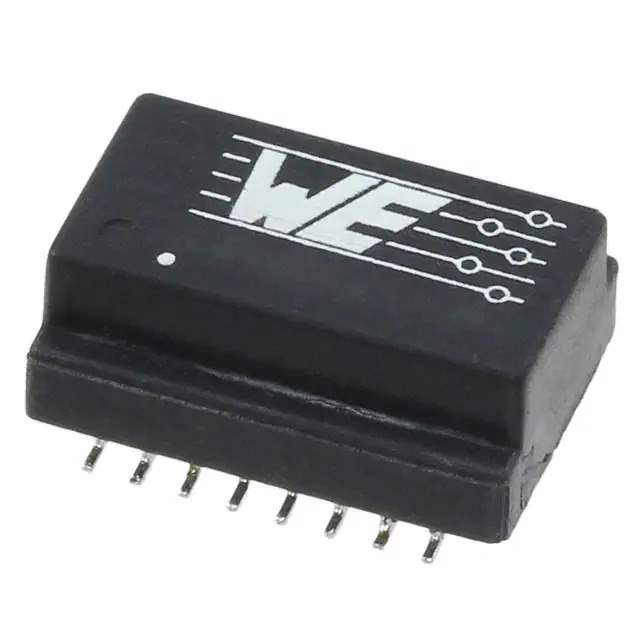

7490100161A Real Image
Same model may have multiple batches, images only for reference.

7490100161A

Part No 7490100161A
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER 10/100 BASE-T SMD
Datasheet
7490100161A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Switching Converter, SMPS Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Type Configurable (For DC/DC)
Voltage - Isolation 1500Vrms
Inductance @ Frequency 350µH @ 100kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max) 0.250" (6.35mm)
Footprint 0.500" L x 0.370" W (12.70mm x 9.40mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857639-7490100161A
Ultra Librarian 3D Model Ultra Librarian 7490100161A CAD Model

Description

The WE-LAN series from Wurth Electronics Inc is a versatile and configurable transformer for DC/DC applications.

  • Type: Switching Converter Transformer
  • Mounting Type: Surface Mount
  • Size: 0.500" L x 0.346" W (12.70mm x 8.80mm)
  • Voltage Isolation: 1500Vrms
  • Inductance: 350μH @ 100kHz
  • Operating Temperature: -40°C to 125°C
  • Package Quantity: 600 pcs
