Same model may have multiple batches, images only for reference.

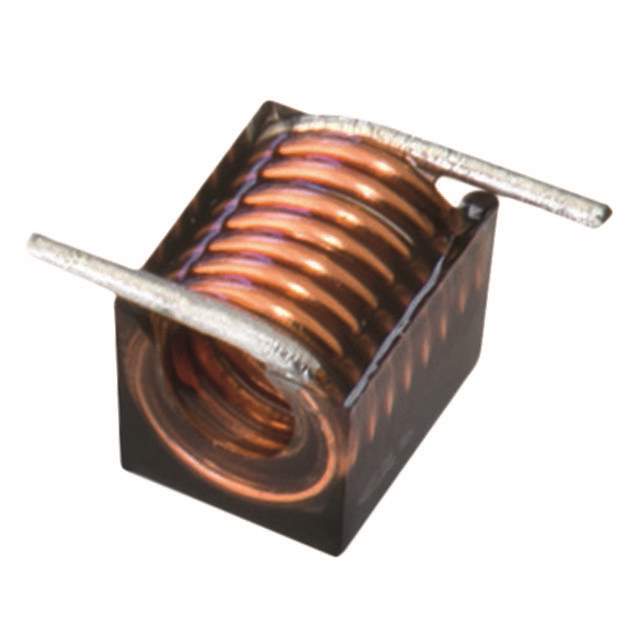

744912210 Real Image
Same model may have multiple batches, images only for reference.

744912210

Part No 744912210
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 100NH 1.7A 12.3MOHM SM / 100 nH Unshielded Wirewound Inductor 1.7 A 12.3mOhm Max Nonstandard
Datasheet
744912210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Wirewound
Material - Core Air
Inductance 100 nH
Tolerance ±5%
Current Rating (Amps) 1.7 A
Shielding Unshielded
DC Resistance (DCR) 12.3mOhm Max
Q @ Freq 100 @ 150MHz
Frequency - Self Resonant 1.2GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 150 MHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 4248
Size / Dimension 0.190" L x 0.150" W (4.83mm x 3.81mm)
Height - Seated (Max) 0.165" (4.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-5644-1,732-5644-2,732-5644-6
Standard Package 1,000
Win Source Part Number 1330591-744912210
Ultra Librarian 3D Model Ultra Librarian 744912210 CAD Model

Description

The Würth Elektronik 744912210 is a fixed inductor that is ideal for use in surface mount applications.

  • Inductance: 100nH
  • Tolerance: ±5%
  • Type: Wirewound
  • Current Rating: 1.7A
  • Temperature Range: -40°C to 125°C
  • Case/Package: Nonstandard
  • Height: 0.165" (4.20mm)
  • Air Core Material: Yes
