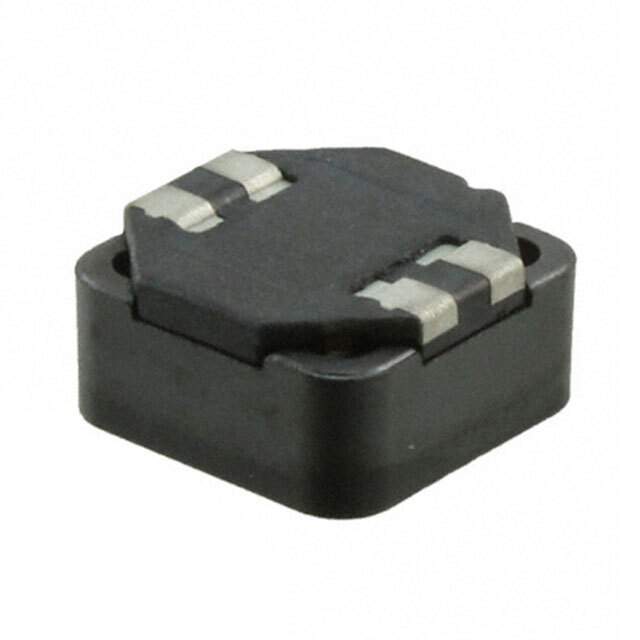

The WE-DD series by Wurth Electronics Inc is a shielded inductor array designed for signal transformers.

• Package: It comes in a tape & reel package and has a size of 0.492" L x 0.492" W (12.50mm x 12.50mm).
• Size: The WE-DD inductor array has a height of 0.256" (6.50mm) and consists of 2 coils.
• Inductance: It offers an inductance of 88 μH when connected in series and 22 μH when connected in parallel.
• Current Rating: The maximum current rating is 925mA for series connection and 1.85A for parallel connection.
• Mounting & Temperature: This inductor array is suitable for surface mount mounting and operates in a temperature range of -40°C to 125°C.
• Applications: The WE-DD series is commonly used in applications that require signal transformation and filtering, such as power supplies and audio systems.
• Performance: With its compact size and excellent performance, the WE-DD series provides reliable and efficient signal processing.
