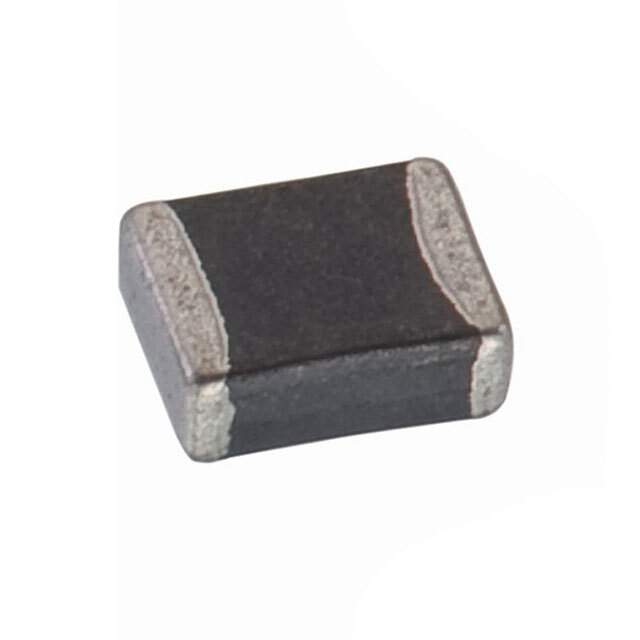

74479276168 Real Image
Same model may have multiple batches, images only for reference.

74479276168

Part No 74479276168
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680NH 2.5A 54 MOHM SMD / 680 nH Shielded Molded Inductor 2.5 A 54mOhm Max 0806 (2016 Metric)
Datasheet
74479276168 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Molded
Inductance 680 nH
Tolerance ±30%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-9711-6,732-9711-2,732-9711-1
Standard Package 3,000
Win Source Part Number 1327584-74479276168
Ultra Librarian 3D Model Ultra Librarian 74479276168 CAD Model

Description

The Würth Elektronik 74479276168 is a high-quality inductor that is designed to meet the needs of various electronic applications.

  • Shielding: Yes
  • Current Rating: 2.5 A
  • DC Resistance: 54mOhm Max
  • Inductance: 680 nH
  • Frequency Test: 1 MHz
  • Operating Temperature Range: -40°C ~ 125°C
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height Seated (max): 0.039" (1.00mm)
  • Package: Reel (TR)
