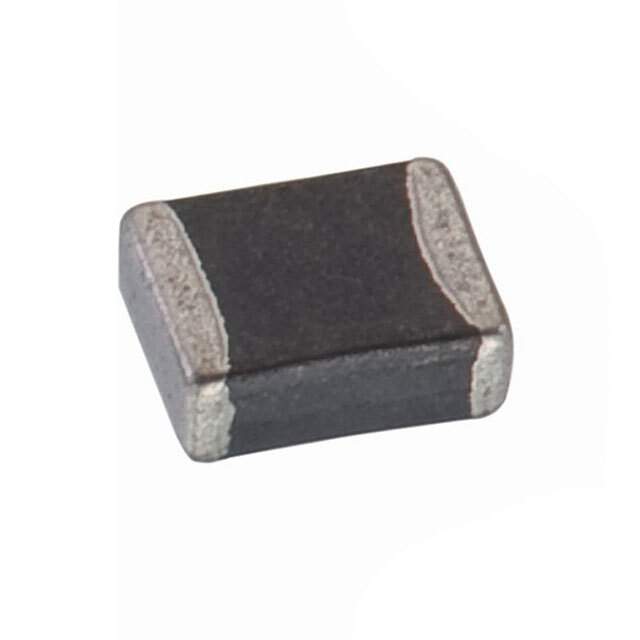

74479276124 Real Image
Same model may have multiple batches, images only for reference.

74479276124

Part No 74479276124
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 240NH 3.6A 23 MOHM SMD / 240 nH Shielded Molded Inductor 3.6 A 23mOhm Max 0806 (2016 Metric)
Datasheet
74479276124 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Molded
Inductance 240 nH
Tolerance ±30%
Current Rating (Amps) 3.6 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 23mOhm Max
Frequency - Self Resonant 180MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-9709-6,732-9709-1,732-9709-2
Standard Package 3,000
Win Source Part Number 1330663-74479276124
Ultra Librarian 3D Model Ultra Librarian 74479276124 CAD Model

Description

The 1330663-74479276124 is a molded, shielded fixed inductor from Würth Elektronik.

  • Manufacturer: Würth Elektronik
  • Inductance: 240nH
  • Tolerance: ±30%
  • DC Resistance: 23mOhm max
  • Current Rating: 3.6A
  • Operating Temperature: -40°C to 125°C
  • Self-Resonant Frequency: 180MHz
  • Package: 0806 (2016 Metric)
  • Application: Power supplies, DC-DC converters
