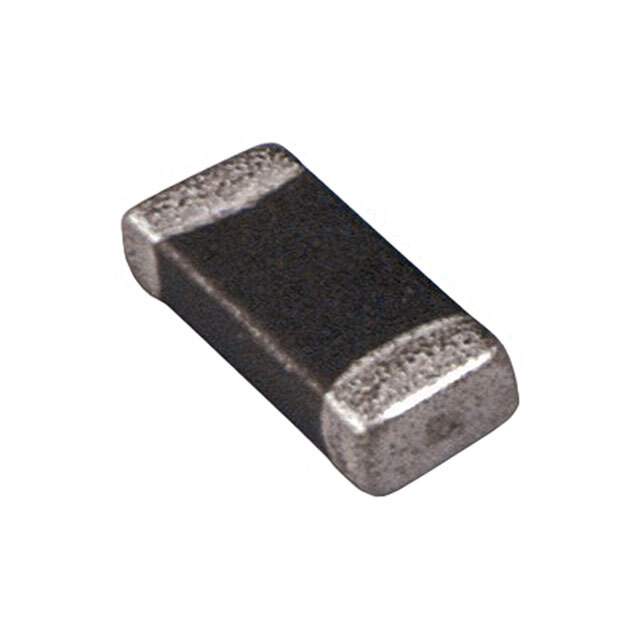

7447916 Real Image
Same model may have multiple batches, images only for reference.

7447916

Part No 7447916
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 50MA 900MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MI
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 4.7 µH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Unshielded
DC Resistance (DCR) 900mOhm Max
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 41MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 MHz
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.051" (1.30mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857606-7447916
Ultra Librarian 3D Model Ultra Librarian 7447916 CAD Model

Description

The WE-MI series from Wurth Electronics Inc is a range of fixed inductors designed for a variety of electronic applications.

  • Type: Multilayer inductor with an unshielded design
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.051" (1.30mm)
  • Inductance: 4.7 µH
  • Tolerance: ±10%
  • Core Material: Nickel zinc ferrite (NiZn)
  • Q Value: 45 @ 10MHz
  • Self-Resonant Frequency: 41MHz
  • Temperature Range: -55°C to 125°C
  • Current Rating: 50 mA
  • DC Resistance: 900mOhm max
