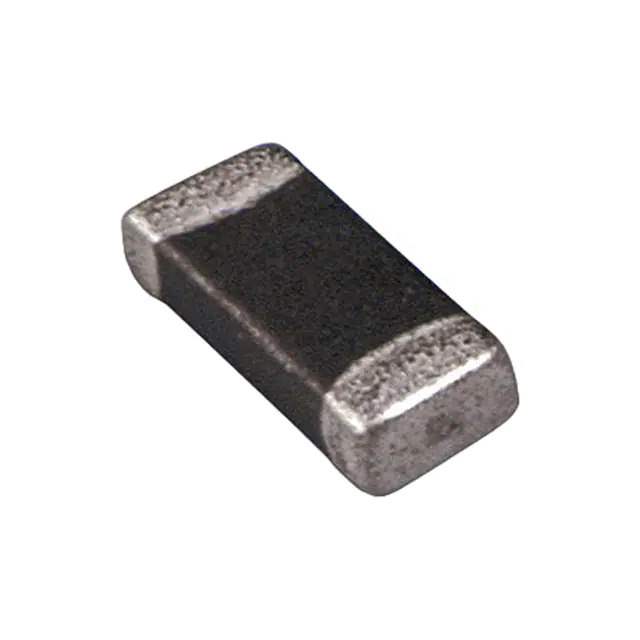

7447912 Real Image
Same model may have multiple batches, images only for reference.

7447912

Part No 7447912
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 100NH 250MA 250MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MI
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 100 nH
Tolerance ±10%
Current Rating (Amps) 250 mA
Shielding Unshielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 20 @ 25MHz
Frequency - Self Resonant 270MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.051" (1.30mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 547419-7447912
Ultra Librarian 3D Model Ultra Librarian 7447912 CAD Model

Description

The WE-MI series is a range of multilayer fixed inductors designed for use in electronic circuits.

  • Win Source Part Number: 547419-7447912
  • Shielding: Unshielded
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Inductance: 100 nH
  • Seated Height: 0.051" (1.30mm)
  • Mounting: Surface Mountable
  • Package: 1206 (3216 Metric)
  • DC Resistance (DCR): 250mOhm Max
  • Current Rating: 250 mA
  • Operating Temperature: -55°C to 125°C
  • Core Material: Nickel Zinc Ferrite (NiZn)
  • Self-Resonant Frequency: 270MHz
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pcs
  • Inductance Tolerance: ±10%
  • Product Status: Active
