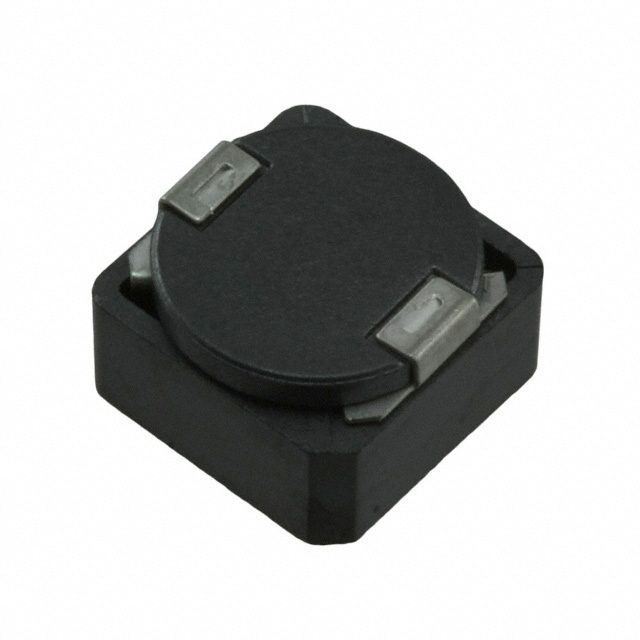

7447798131 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7447798131

Part No 7447798131
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description 13 µH Shielded Drum Core, Wirewound Inductor 5.85 A 22.5mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Würth Elektronik
Series WE-PDF
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 13 µH
Tolerance ±20%
Current Rating (Amps) 5.85 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 22.5mOhm Max
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.252" (6.40mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1478593-7447798131
Ultra Librarian 3D Model Ultra Librarian 7447798131 CAD Model
