Same model may have multiple batches, images only for reference.

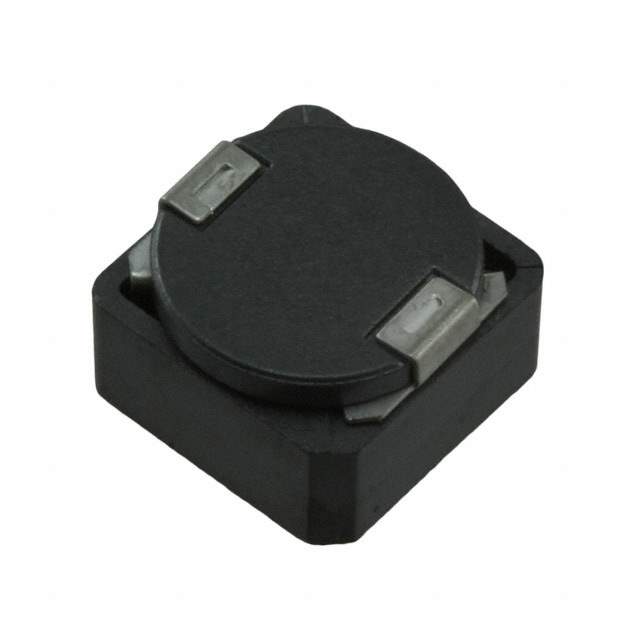

7447797470 Real Image
Same model may have multiple batches, images only for reference.

7447797470

Part No 7447797470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PDF | FIXED IND 4.7UH 6.2A 19.5 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 6.2A
Current - Saturation 8A
Shielding Shielded
DC Resistance (DCR) 19.5mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130101-7447797470
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447797470 CAD Model

Description

The Wurth Electronics Inc. It is a wirewound type inductor that is shielded and has an inductance of 4.7μH with a tolerance of ±20%.

  • Type: Wirewound
  • Shielded: Yes
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Mounting Style: SMD
  • Material-Core: Nickel Zinc Ferrite (NiZn)
  • Maximum DC Resistance (DCR): 19.5mOhm
