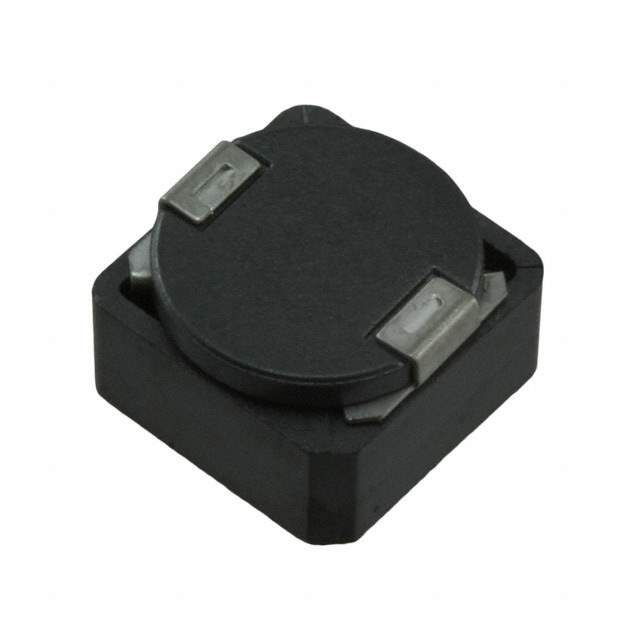

7447797300 Real Image1 7447797300 Real Image2
Same model may have multiple batches, images only for reference.
7447797300 Real Image1 7447797300 Real Image2
7447797300 Real Image1 7447797300 Real Image2
Same model may have multiple batches, images only for reference.

7447797300

Part No 7447797300
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.5UH 8.4A 10.2MOHM SM / 2.5 µH Shielded Drum Core, Wirewound Inductor 8.4 A 10.2mOhm Max Nonstandard
Datasheet
7447797300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PDF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 2.5 µH
Tolerance ±20%
Current Rating (Amps) 8.4 A
Current - Saturation (Isat) 10.5A
Shielding Shielded
DC Resistance (DCR) 10.2mOhm Max
Q @ Freq -
Frequency - Self Resonant 61MHz
Ratings -
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.177" (4.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381120-7447797300
Ultra Librarian 3D Model Ultra Librarian 7447797300 CAD Model

Description

The WE-PDF series offers fixed inductors with a drum core and wirewound construction. They are manufactured by Wurth Electronics Inc.

  • Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Height: 0.177" (4.50mm)
  • Mounting Type: Surface Mount
  • Inductance: 2.5µH
  • Tolerance: ±20%
  • DC Resistance: 10.2mOhm
  • Current Rating: 8.4A
  • Packaging: Tape and Reel
  • Pieces Per Package: 500
  • Shielding: Shielded
  • Operating Temperature: -40°C to 150°C
  • REACH Unaffected: Yes
  • Moisture Sensitivity Level: 1 (Unlimited)
