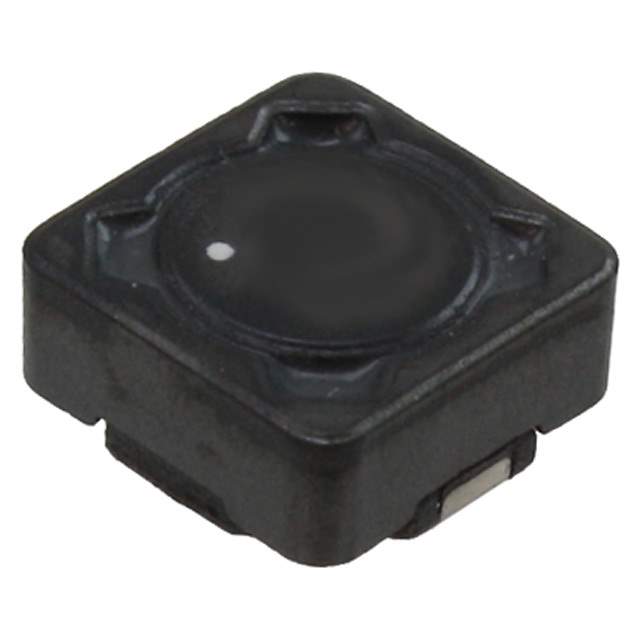

7447789147 Real Image1 7447789147 Real Image2
Same model may have multiple batches, images only for reference.
7447789147 Real Image1 7447789147 Real Image2
7447789147 Real Image1 7447789147 Real Image2
Same model may have multiple batches, images only for reference.

7447789147

Part No 7447789147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 850MA 360MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 850 mA 360mOhm Max Nonstandard
Datasheet
7447789147 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Robust
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq -
Frequency - Self Resonant 13.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.138" (3.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,000 pcs
Win Source Part Number 1381119-7447789147
Ultra Librarian 3D Model Ultra Librarian 7447789147 CAD Model

Description

The WE-PD Robust series inductor is a fixed inductor with a drum core, wirewound design. It is AEC-Q200 rated and manufactured by Wurth Electronics Inc.

  • Shielding: Shielded
  • Package / Case: Nonstandard
  • Inductance: 47 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 360mOhm maximum
  • Current Rating: 850 mA
  • Saturation Current (Isat): 1A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
