Same model may have multiple batches, images only for reference.

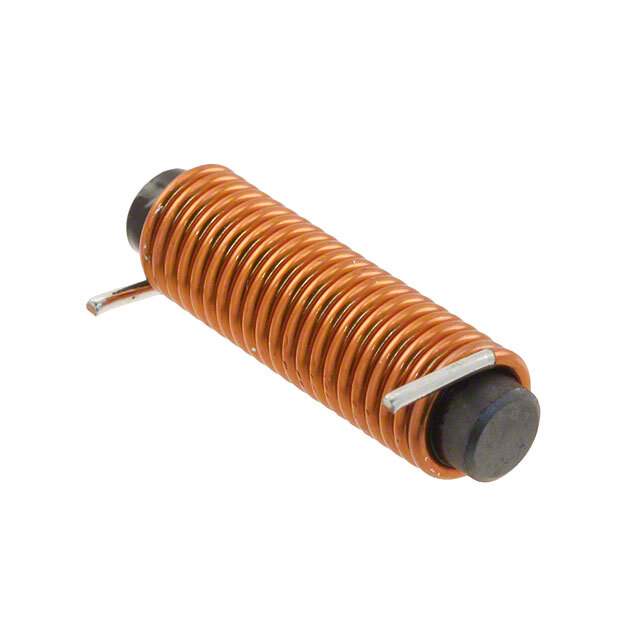

744711010 Real Image
Same model may have multiple batches, images only for reference.

744711010

Part No 744711010
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 10A 8.8 MOHM TH / 10 µH Unshielded Drum Core, Wirewound Inductor 10 A 8.8mOhm Radial, Horizontal Cylinder (Open)
Datasheet
744711010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Würth Elektronik
Series WE-SD
Package Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±25%
Current Rating (Amps) 10 A
Shielding Unshielded
DC Resistance (DCR) 8.8mOhm
Frequency - Self Resonant 43MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Size / Dimension 0.339" Dia x 1.217" L (8.60mm x 30.90mm)
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1351831-744711010
Ultra Librarian 3D Model Ultra Librarian 744711010 CAD Model

Description

The WE-SD series inductors from Würth Elektronik are drum core, wirewound inductors designed for use in fixed inductors applications.

  • Package Size: 0.339" Dia x 1.217" L (8.60mm x 30.90mm)
  • Inductance: 10 µH
  • Inductance Tolerance: ±25%
  • Material: Ferrite
  • DC Resistance (DCR): 8.8mOhm
  • Current Rating (Max): 10 A
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 150°C
  • Shielding: Unshielded
