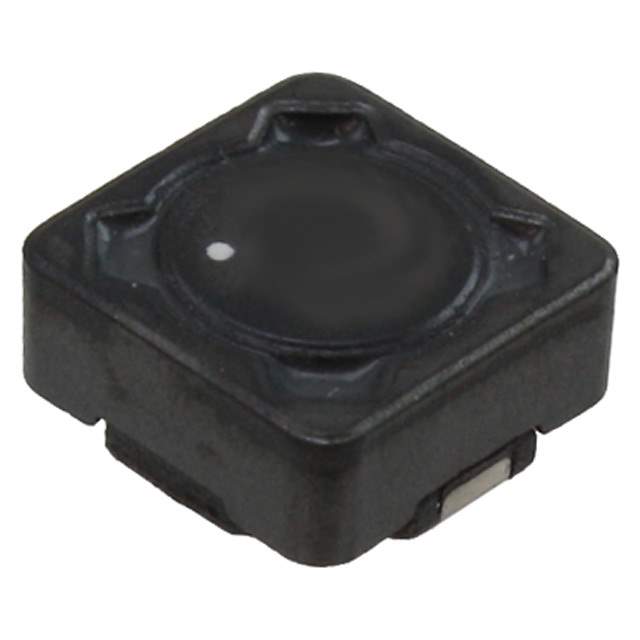

7447789002 Real Image
Same model may have multiple batches, images only for reference.

7447789002

Part No 7447789002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 4.02A 23MOHM SMD
Datasheet
7447789002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Robust
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4.02 A
Current - Saturation (Isat) 4.8A
Shielding Shielded
DC Resistance (DCR) 23mOhm Max
Frequency - Self Resonant 115MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857587-7447789002
Ultra Librarian 3D Model Ultra Librarian 7447789002 CAD Model

Description

The WE-PD Robust series fixed inductor is a high-quality electronic component designed for various applications.

  • Construction: Drum core, wirewound
  • Shielded: Shielded
  • Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Inductance: 2.2 μH
  • Tolerance: ±20%
  • Current: 4.02A
  • DC Resistance: 23mΩ
  • Temperature Range: -40°C to 125°C
