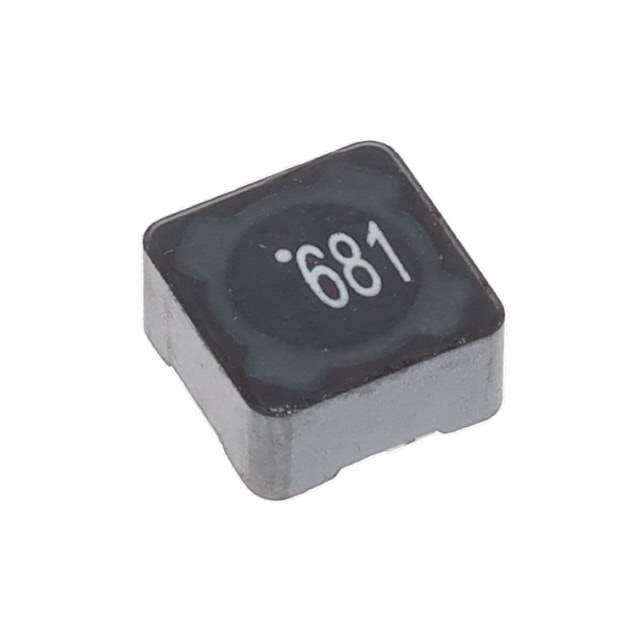

74477726 Real Image
Same model may have multiple batches, images only for reference.

74477726

Part No 74477726
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680UH 230MA 4.63OHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 230 mA
Current - Saturation (Isat) 280mA
Shielding Shielded
DC Resistance (DCR) 4.63Ohm Max
Frequency - Self Resonant 2.7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7345
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857571-74477726
Ultra Librarian 3D Model Ultra Librarian 74477726 CAD Model

Description

The Win Source Part Number 857571-74477726 is a high-quality fixed inductor designed for electronic circuits.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Type: Drum core, wirewound
  • Shielded: Shielded
  • Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Inductance: 680µH
  • Seated Height: 0.177" (4.50mm)
  • Tolerance: ±20%
  • AEC-Q200 Applications: Yes
  • Core: Ferrite
  • Self-Resonant Frequency: 2.7MHz
  • Mounting Type: Surface Mountable
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc WE-PD
