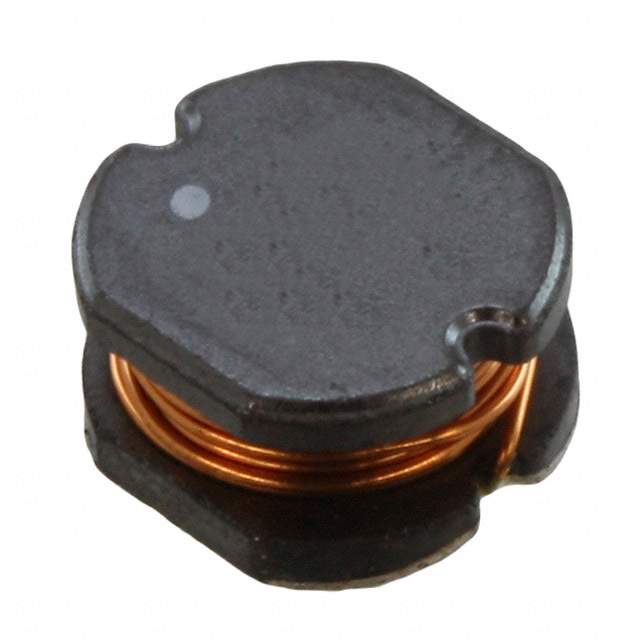

744776215 Real Image
Same model may have multiple batches, images only for reference.

744776215

Part No 744776215
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD2 | FIXED IND 150UH 810MA 470 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Tape and Reel
Type Wirewound
Material - Core Ferrite
Inductance 150μH
Tolerance ±10%
Current Rating (Amps) 810mA
Current - Saturation 900mA
Shielding Unshielded
DC Resistance (DCR) 470mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Maximum) 5.90mm
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1130081-744776215
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744776215 CAD Model

Description

The 744776215 is a wirewound inductor from Wurth Electronics Inc.

  • Supply and Demand: Balanced
  • Win Source Part Number: 1130081-744776215
  • Manufacturer Homepage: www.we-online.com
  • Inductance: 150μH
  • Tolerance: ±10%
  • Material: Ferrite
  • DC Resistance (DCR): 470mOhm Max
  • Mounting Style: SMD
  • Height: 5.90mm
  • Category: Inductors, Coils, Chokes
