Same model may have multiple batches, images only for reference.

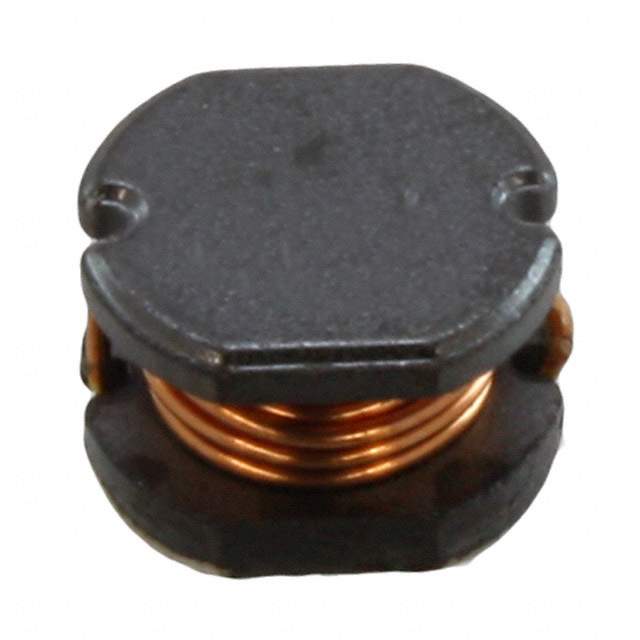

744775133 Real Image
Same model may have multiple batches, images only for reference.

744775133

Part No 744775133
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 33UH 1.35A 130 MOHM / POWER-CHOKE WE-PD2
Datasheet
744775133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±10%
Current Rating (Amps) 1.35A
Current - Saturation 1.47A
Shielding Unshielded
DC Resistance (DCR) 130mOhm Max
Frequency - Self Resonant 14.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802138-744775133
Ultra Librarian 3D Model Ultra Librarian 744775133 CAD Model

Description

The 802138-744775133 from Würth Elektronik is a wirewound type inductor that comes in an SMD mounting style.

  • Inductor Type: Wirewound
  • Mounting Type: SMD
  • Shielding: Unshielded
  • Inductance: 33μH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Current Saturation: 1.47A
  • Frequency Self-Resonant: 14.5MHz
  • DC Resistance (DCR): 130mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Popularity: High
