Same model may have multiple batches, images only for reference.

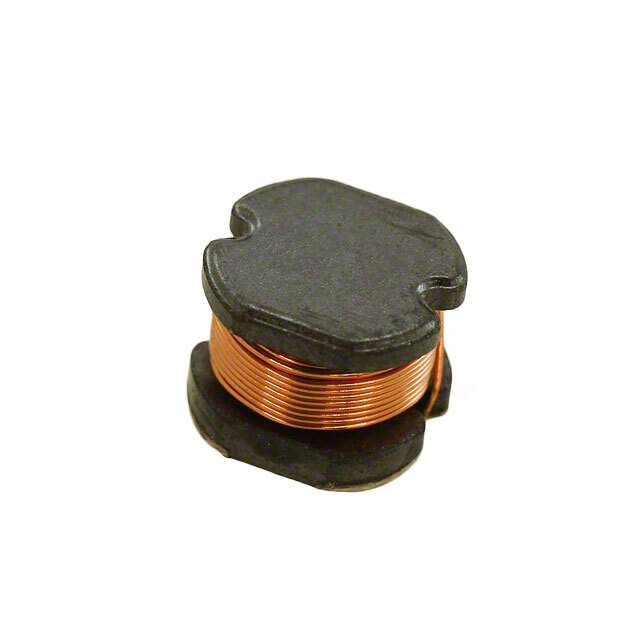

744774222 Real Image
Same model may have multiple batches, images only for reference.

744774222

Part No 744774222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 420MA 1.57OHM SM
Datasheet
744774222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 420 mA
Current - Saturation (Isat) 470mA
Shielding Unshielded
DC Resistance (DCR) 1.57Ohm Max
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.191" (4.85mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845255-744774222
Ultra Librarian 3D Model Ultra Librarian 744774222 CAD Model

Description

The WE-PD2 series from Wurth Electronics Inc is a range of drum core, wirewound inductors.

  • Core Material: Drum Core, Wirewound
  • Shielding: Unshielded
  • Packaging: Tape & Reel
  • Size / Dimension: 0.228" L x 0.205" W (5.80mm x 5.20mm)
  • Inductance: 220 µH
  • Tolerance: ±10%
  • Current Rating: 420 mA
  • DC Resistance (DCR): 1.57Ohm max
  • Operating Temperature: -40°C ~ 125°C
  • Frequency - Self Resonant: 5MHz
