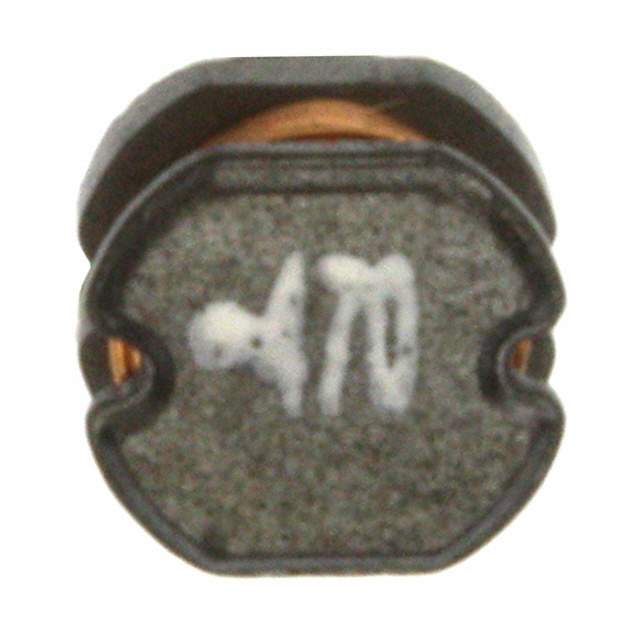

744773147 Real Image
Same model may have multiple batches, images only for reference.

744773147

Part No 744773147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 680MA 844 MOHM / POWER CHOKE WE-PD2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±10%
Current Rating (Amps) 680mA
Current - Saturation 770mA
Shielding Unshielded
DC Resistance (DCR) 844mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808123-744773147
Ultra Librarian 3D Model Ultra Librarian 744773147 CAD Model

Description

The Würth Elektronik 744773147 is a wirewound inductor with an inductance of 47μH.

  • Tolerance: ±10%
  • Shielding: Unshielded
  • Current Rating: 680mA
  • Operating Temperature: -40°C to 125°C
  • Self-Resonant Frequency: 17MHz
  • DC Resistance (DCR): 844mOhm Max
  • Package: Non-standard
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
