Same model may have multiple batches, images only for reference.

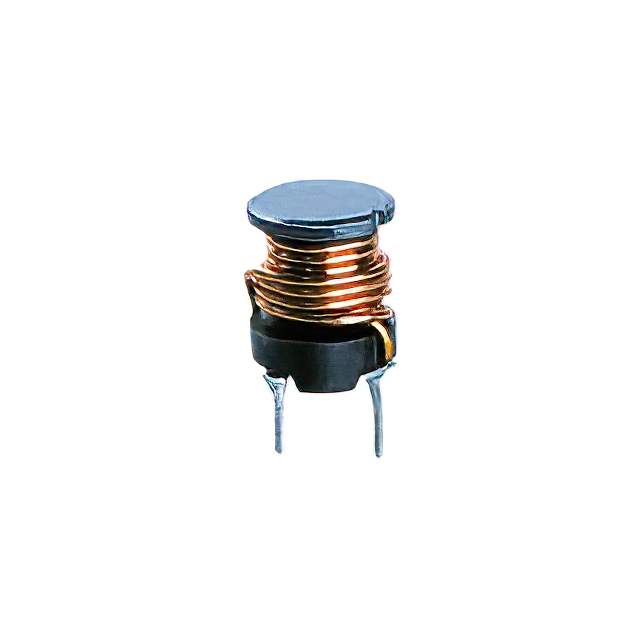

7447720681 Real Image
Same model may have multiple batches, images only for reference.

7447720681

Part No 7447720681
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680UH 520MA 1.37OHM TH
Datasheet
7447720681 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TI
Package Tray
Product Status Active
Type Wirewound
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 520 mA
Current - Saturation (Isat) 610mA
Shielding Unshielded
DC Resistance (DCR) 1.37Ohm Max
Frequency - Self Resonant 2.1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.307" Dia (7.80mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 140 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1123960-7447720681
Ultra Librarian 3D Model Ultra Librarian 7447720681 CAD Model

Description

The WE-TI series by Wurth Electronics Inc is a wirewound fixed inductor.

  • Package: tray
  • Size: 0.307" diameter (7.80mm)
  • Inductance: 680 μH
  • Tolerance: ±10%
  • Maximum Seated Height: 0.394" (10.00mm)
  • DC Resistance (DCR): 1.37 Ohm Max
  • Mounting: through-hole
  • Operating Temperature: -40°C to 125°C
  • Commonly Used In: applications that require high inductance and reliability, such as power supplies and automotive electronics
