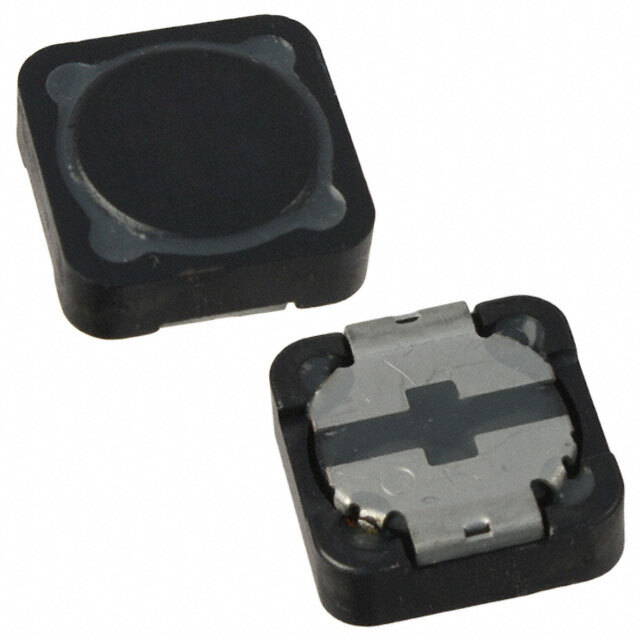

Same model may have multiple batches, images only for reference.
7447715003 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7447715003

Part No 7447715003
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description 3.3 µH Shielded Drum Core, Wirewound Inductor 5.9 A 13mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Würth Elektronik
Series WE-PD
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 5.9 A
Current - Saturation (Isat) 7.1A
Shielding Shielded
DC Resistance (DCR) 13mOhm Max
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1479019-7447715003
Ultra Librarian 3D Model Ultra Librarian 7447715003 CAD Model
