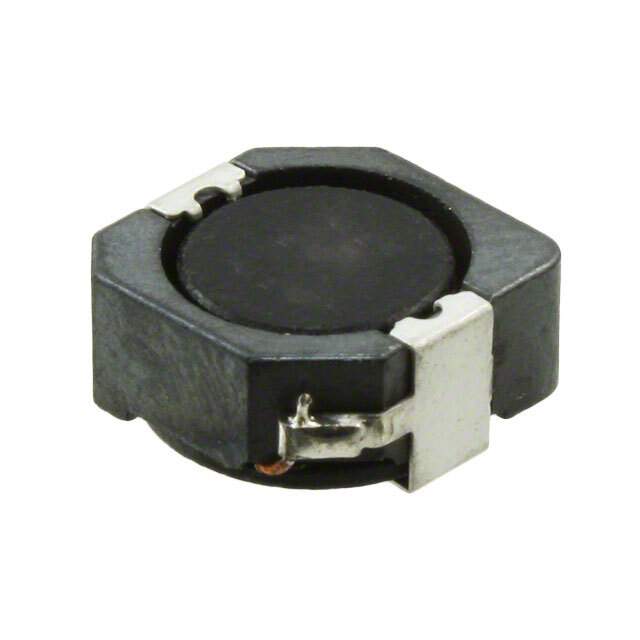

7447714221 Real Image1 7447714221 Real Image2
Same model may have multiple batches, images only for reference.
7447714221 Real Image1 7447714221 Real Image2
7447714221 Real Image1 7447714221 Real Image2
Same model may have multiple batches, images only for reference.

7447714221

Part No 7447714221
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 1A 439 MOHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 1 A 439mOhm Max Nonstandard
Datasheet
7447714221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 439mOhm Max
Q @ Freq -
Frequency - Self Resonant 4.3MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381111-7447714221
Ultra Librarian 3D Model Ultra Librarian 7447714221 CAD Model

Description

The 1198247 is a drum core, wirewound inductor from the WE-PD Performance series by Wurth Electronics Inc.

  • Mounting Type: Surface Mount
  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 220 μH
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ferrite
  • Shielding: Shielded
  • DC Resistance (DCR): 439mOhm maximum
  • Current Rating: 1A
  • Package: Tape & Reel
  • Pieces per Package: 500
  • Self-Resonant Frequency: 4.3MHz
  • Application: AEC-Q200 Rated
