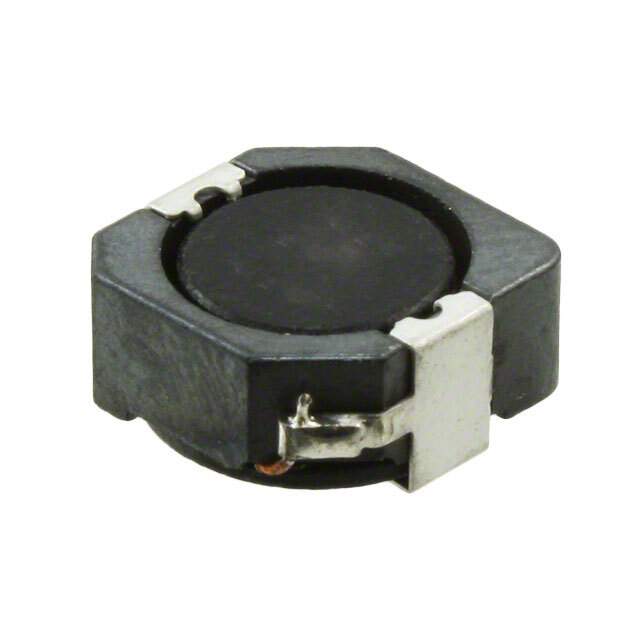

7447714220 Real Image
Same model may have multiple batches, images only for reference.

7447714220

Part No 7447714220
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 22UH 3A 50 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 3 A 50mOhm Max Nonstandard
Datasheet
7447714220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Frequency - Self Resonant 14.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-2992-2,732-2992-1,732-2992-6
Standard Package 500
Win Source Part Number 1327837-7447714220
Ultra Librarian 3D Model Ultra Librarian 7447714220 CAD Model

Description

The 1327837-7447714220 is a fixed inductor manufactured by Würth Elektronik.

  • Packaging: Reel-TR
  • Standard Package: 500
  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Inductance: 22μH
  • Tolerance: ±20%
  • Height Seated (max): 0.197" (5.00mm)
  • ECCN: EAR99
  • AEC-Q200: Yes
