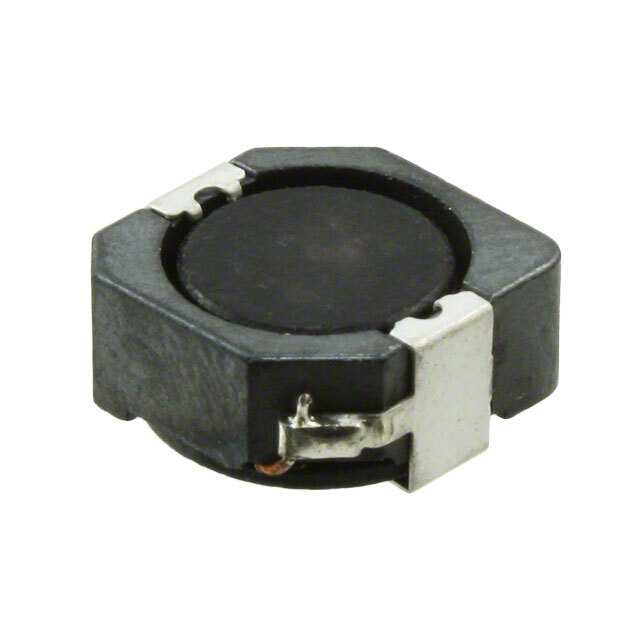

Same model may have multiple batches, images only for reference.
7447714047 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7447714047

Part No 7447714047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description 4.7 µH Shielded Drum Core, Wirewound Inductor 7 A 12.4mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Würth Elektronik
Series WE-PD Performance
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 12.4mOhm Max
Frequency - Self Resonant 34MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1478940-7447714047
Ultra Librarian 3D Model Ultra Librarian 7447714047 CAD Model
