Same model may have multiple batches, images only for reference.

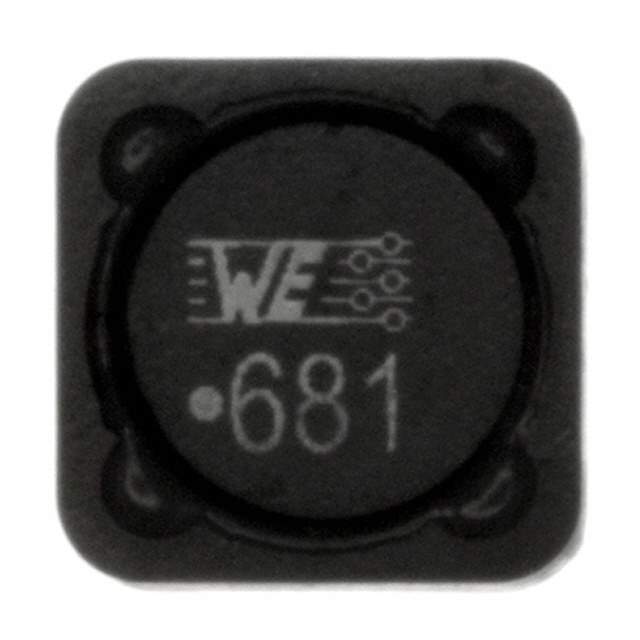

7447709681 Real Image
Same model may have multiple batches, images only for reference.

7447709681

Part No 7447709681
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680UH 1.1A 825MOHM SMD
Datasheet
7447709681 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 825mOhm Max
Frequency - Self Resonant 1.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857532-7447709681
Ultra Librarian 3D Model Ultra Librarian 7447709681 CAD Model

Description

The 857532-7447709681 is a fixed inductor from the WE-PD series by Wurth Electronics Inc.

  • Type: Drum core, wirewound inductor
  • Shielding: Shielded
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 680 µH
  • Height: 0.394" (10.00mm) max seated
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • DC Resistance (DCR): 825mOhm Max
  • Current Rating: 1.1 A
  • Operating Temperature: -40°C to 125°C
  • Material: Ferrite
  • Frequency Self-Resonant: 1.5MHz
  • Standard Package: 250 pcs
