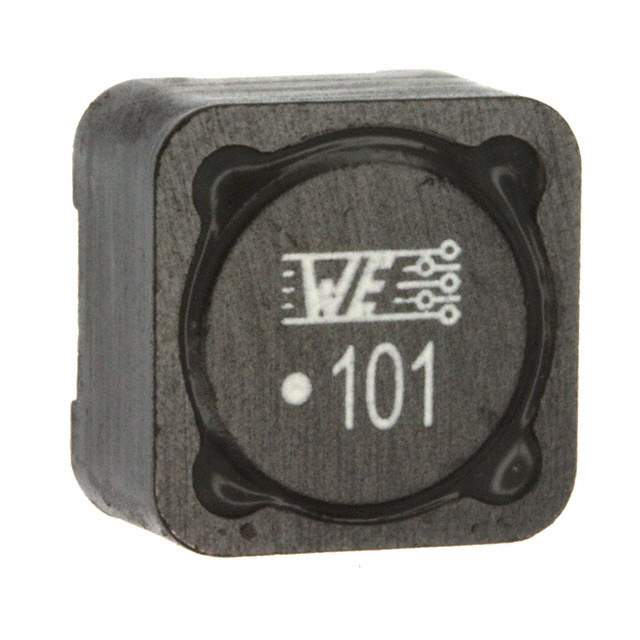

74477020 Real Image
Same model may have multiple batches, images only for reference.

74477020

Part No 74477020
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 100UH 2.2A 220MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 220mOhm Max
Frequency - Self Resonant 5.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 849214-74477020
Ultra Librarian 3D Model Ultra Librarian 74477020 CAD Model

Description

The WE-PD is a drum core wirewound inductor designed for various applications. Wurth Electronics Inc manufactures the WE-PD.

  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 100 μH
  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • DC Resistance: 220mOhm
  • Current Rating: 2.2A
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
