Same model may have multiple batches, images only for reference.

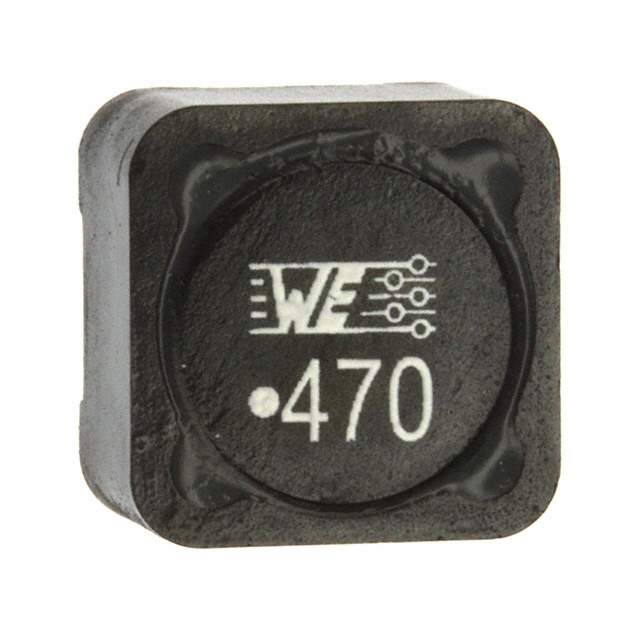

744770147 Real Image
Same model may have multiple batches, images only for reference.

744770147

Part No 744770147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD | FIXED IND 47UH 2.7A 100 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating (Amps) 2.7A
Current - Saturation 3A
Shielding Shielded
DC Resistance (DCR) 100mOhm Max
Frequency - Self Resonant 7.9MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.315" (8.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130042-744770147
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744770147 CAD Model

Description

The 744770147 is a surface mount wirewound inductor designed for use in automotive applications manufactured by Wurth Electronics Inc..

  • Inductance: 47μH
  • Tolerance: ±20%
  • Current Rating: up to 2.7A
  • DC Resistance: 100mOhm Max
  • Compliance: AEC-Q200 compliant
  • Package: nonstandard package
