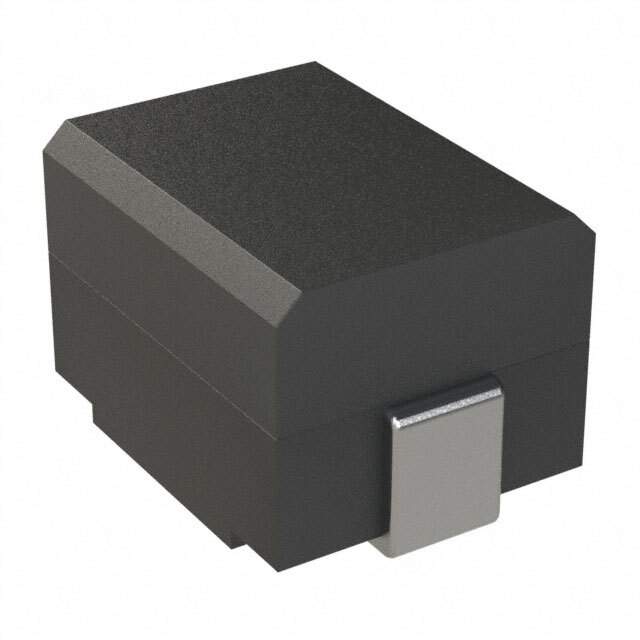

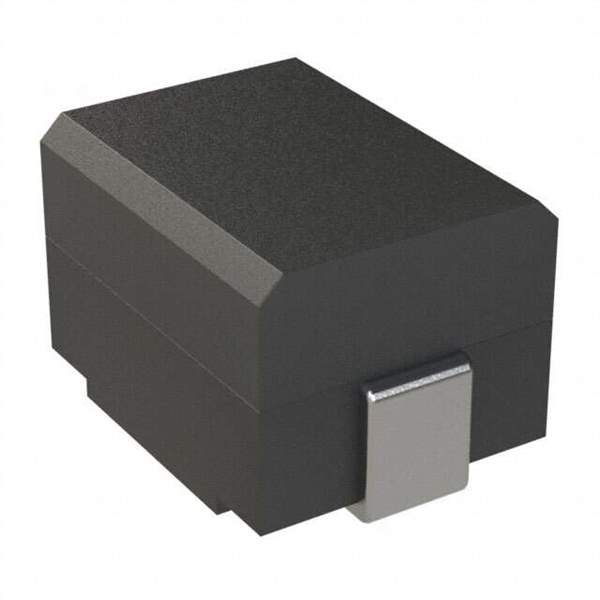

74476401 Real Image
Same model may have multiple batches, images only for reference.

74476401

Part No 74476401
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1UH 400MA 700 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-GF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±10%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 700mOhm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 380MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857508-74476401
Ultra Librarian 3D Model Ultra Librarian 74476401 CAD Model

Description

The WE-GF series from Wurth Electronics Inc is an unshielded drum core, wirewound inductor.

  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Inductance: 1 μH
  • Height: 0.094" (2.40mm)
  • Mounting Type: Surface Mount
  • Package: 1210 (3225 Metric)
  • DC Resistance (DCR): 700mOhm Max
  • Current Rating: 400 mA
  • Operating Temperature: -40°C to 105°C
  • Core Material: Ferrite
  • Self-Resonant Frequency: 380MHz
  • Package: Tape and reel
  • Quantity: 1,000 pieces
