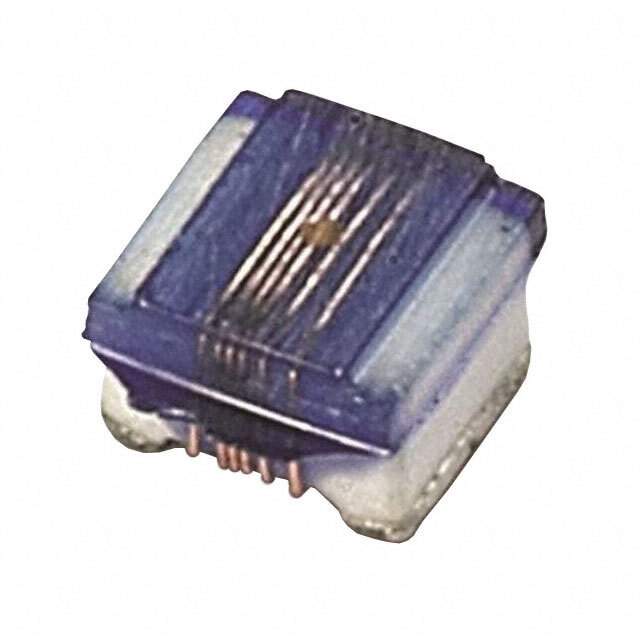

Same model may have multiple batches, images only for reference.

744760047A

Name: 744760047A
Brand: Wurth Electronics Inc
SKU: 1327580
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744760047A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 4.7NH 600MA 60MOHM SMD / 4.7 nH Unshielded Drum Core, Wirewound Inductor 600 mA 60mOhm Max 0805 (2012 Metric)
Datasheet	744760047A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	4.7 nH
Tolerance	±0.2nH
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	60 @ 1GHz
Frequency - Self Resonant	5.8GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	Surface Mount
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.055" (1.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-744760047ATR,732-744760047ADKR,732-744760047ACT
Standard Package	2,000
Win Source Part Number	1327580-744760047A
Ultra Librarian 3D Model	Ultra Librarian 744760047A CAD Model

Alternative Products

Description

Würth Elektronik produces the 1327580-744760047A fixed inductor.

Win Source Part Number: 1327580-744760047A
Package: Reel - TR
Type: Drum core, wirewound
Shielding: Unshielded
Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Inductance: 4.7 nH
Height - Seated (Max): 0.055" (1.40mm)
Standard Package: 2,000
Mounting: Surface Mount
Tolerance: ±0.2nH
Material - Core: Ceramic
Q @ Freq: 60 @ 1GHz
Frequency - Self Resonant: 5.8GHz
DC Resistance (DCR): 60mOhm Max
Supplier Device Package: 0805
Temperature Range - Operating: -40°C ~ 125°C
