Same model may have multiple batches, images only for reference.

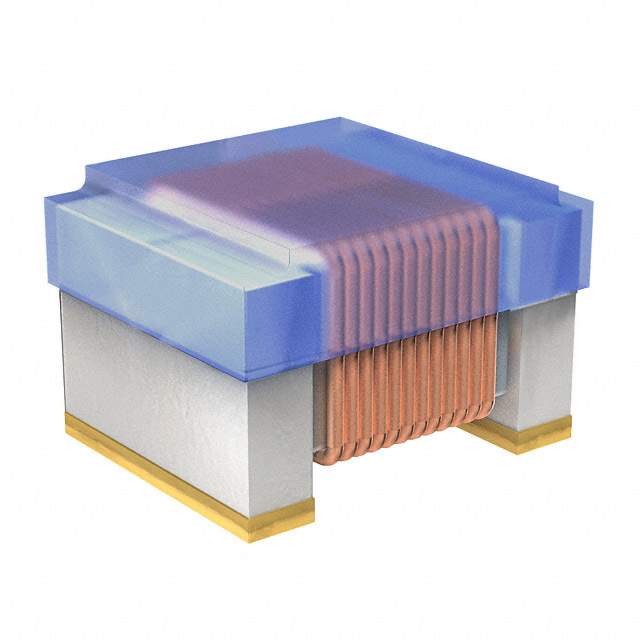

744758327A Real Image
Same model may have multiple batches, images only for reference.

744758327A

Part No 744758327A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.7UH 520MA 1.1OHM SMD / 2.7 µH Unshielded Drum Core, Wirewound Inductor 520 mA 1.1Ohm Max 1008 (2520 Metric)
Datasheet
744758327A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Würth Elektronik
Series WE-RFH
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±5%
Current Rating (Amps) 520 mA
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 135MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 732-3474-2,732-3474-1,732-3474-6
Standard Package 2,000
Win Source Part Number 985386-744758327A
Ultra Librarian 3D Model Ultra Librarian 744758327A CAD Model

Description

The 744758327A is a fixed inductor used in various applications. The manufacturer is Würth Elektronik.

  • Series: WE-RFH
  • Package: 1008 (2520 Metric)
  • Inductance: 2.7 µH
  • Maximum Seated Height: 0.075 inches
  • Tolerance: ±5%
  • Core Material: ferrite
  • Q @ Freq: 20 @ 7.96MHz
  • Applications: drum core, wirewound
  • Frequency Self-Resonant: 135MHz
  • DC Resistance: 1.1Ohm max
  • Current Rating: 520mA
  • Inductance Frequency-Test: 7.96MHz
  • MSL Level: unlimited
  • REACH: unaffected
  • Packaging: tape and reel
