Same model may have multiple batches, images only for reference.

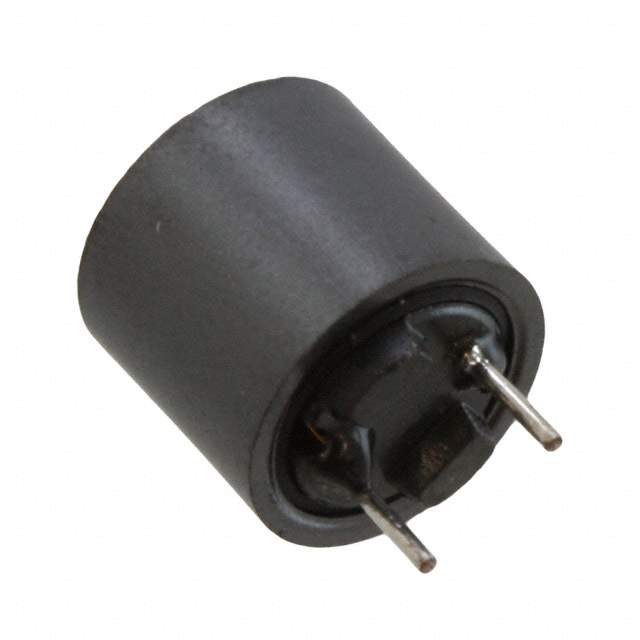

7447471682 Real Image
Same model may have multiple batches, images only for reference.

7447471682

Part No 7447471682
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 6.8MH 240MA 10 OHM TH
Datasheet
7447471682 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TIS
Package Tray
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 mH
Tolerance ±10%
Current Rating (Amps) 240 mA
Current - Saturation (Isat) 180mA
Shielding Shielded
DC Resistance (DCR) 10Ohm Max
Frequency - Self Resonant 540kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.433" Dia (11.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Standard Package 110 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857474-7447471682
Ultra Librarian 3D Model Ultra Librarian 7447471682 CAD Model

Description

The WE-TIS series from Wurth Electronics Inc is a drum core, wirewound inductor designed for use in various electronic applications.

  • Diameter: 0.433" (11.00mm)
  • Maximum Seated Height: 0.453" (11.50mm)
  • Inductance: 6.8 mH
  • Tolerance: ±10%
  • Design: Shielded
  • Package: Tray
  • DC Resistance (DCR): 10Ohm max
  • Temperature Range: -40°C to 125°C
  • Current Rating: 240 mA
