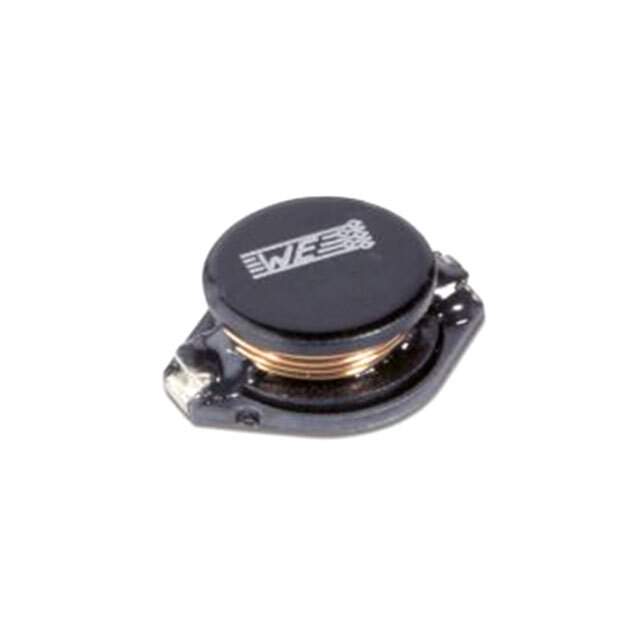

7445820 Real Image
Same model may have multiple batches, images only for reference.

7445820

Part No 7445820
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 100UH 1.8A 190 MOHM / POWER-CHOKE WE-PD 4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 1.8A
Current - Saturation 3.4A
Shielding Unshielded
DC Resistance (DCR) 190mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Maximum) 0.280" (7.11mm)
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809709-7445820
Ultra Librarian 3D Model Ultra Librarian 7445820 CAD Model

Description

The Würth Elektronik 809709-7445820 is a medium popularity wirewound component with a mounting style of SMD and a tolerance of ±20%.

  • Inductance: 100μH
  • Tolerance: ±20%
  • Unshielded: Yes
  • DC Resistance (DCR): 190mOhm Max
  • Saturation Current: 3.4A
  • Frequency Self-Resonant: 6MHz
  • Temperature Range: -40°C ~ 125°C
  • Dimensions: 0.730" L x 0.600" W (18.54mm x 15.24mm)
  • Height Seated (Maximum): 0.280" (7.11mm)
  • Manufacturer Pack Quantity: 300
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 1.8A
  • Inductance Frequency-Test: 100kHz
