Same model may have multiple batches, images only for reference.

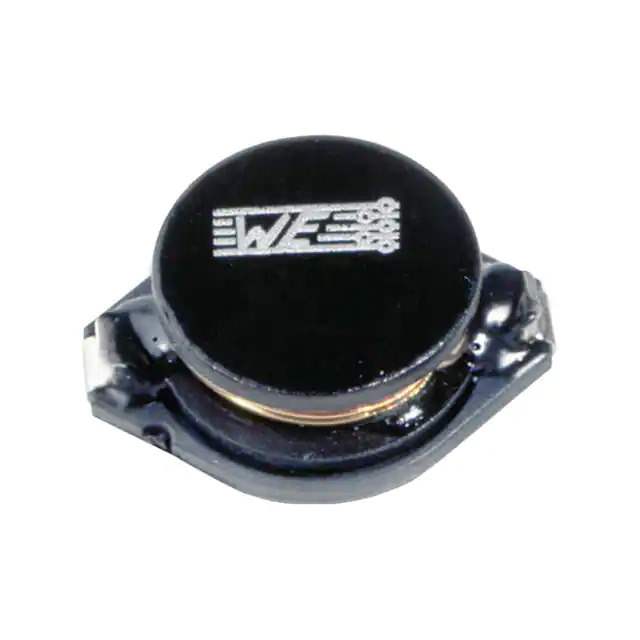

74457222 Real Image
Same model may have multiple batches, images only for reference.

74457222

Part No 74457222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 1.2A 388MOHM SMD
Datasheet
74457222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD4
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 2.4A
Shielding Unshielded
DC Resistance (DCR) 388mOhm Max
Frequency - Self Resonant 3.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max) 0.307" (7.80mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 547327-74457222
Ultra Librarian 3D Model Ultra Librarian 74457222 CAD Model

Description

The WE-PD4 series is a category of fixed inductors with a drum core and wirewound construction.

  • Size: 0.866" L x 0.591" W (22.00mm x 15.00mm)
  • Inductance: 220 µH
  • Mount: surface mount
  • Package: nonstandard
  • DC resistance (DCR): 388mOhm maximum
  • Operating temperature range: -40°C to 125°C
  • Status: currently active
  • Standard package: 250 pcs
