Same model may have multiple batches, images only for reference.

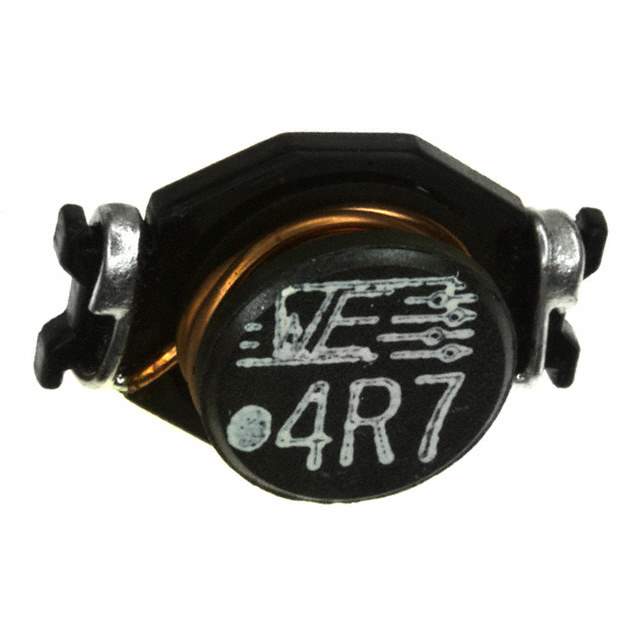

74457047 Real Image
Same model may have multiple batches, images only for reference.

74457047

Part No 74457047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD 4 | FIXED IND 4.7UH 8.5A 11 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Cut Tape (CT)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 8.5A
Current - Saturation 15A
Shielding Unshielded
DC Resistance (DCR) 11mOhm Max
Frequency - Self Resonant 33MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Maximum) 0.307" (7.80mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130012-74457047
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74457047 CAD Model

Description

The Wurth Electronics Inc. 74457047 is a wirewound inductor with an inductance of 4.7μH and a tolerance of ±20%.

  • Manufacturer: Wurth Electronics Inc.
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Current Saturation: 15A
  • Frequency of Self-Resonant: 33MHz
  • Shielding: Unshielded
  • DC Resistance (DCR): 11mOhm Max
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Current Rating (Amps): 8.5A
  • Inductance Frequency-Test: 100kHz
  • Height (Seated): 0.307" (7.80mm)
  • Dimensions: 0.866" L x 0.591" W (22.00mm x 15.00mm)
  • Operating Temperature: -40°C to 125°C
  • Popularity: Medium
  • Supply and Demand: Balanced
  • MSL: 1 (unlimited)
  • Manufacturer Pack Quantity: 1
