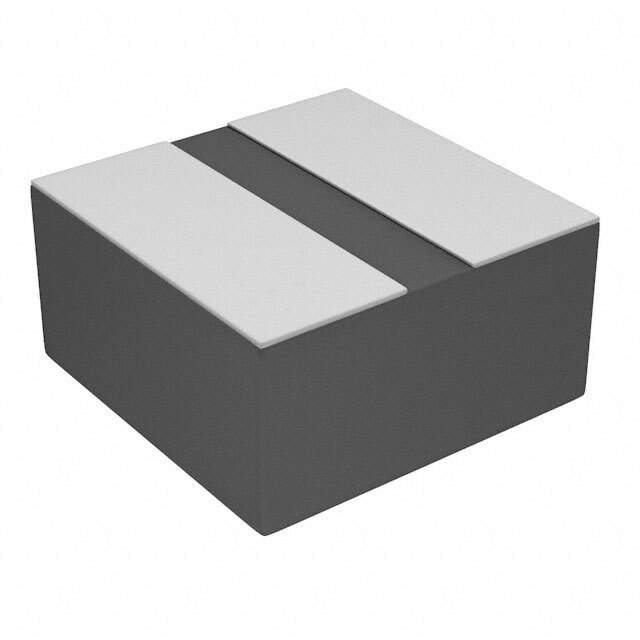

74438335022 Real Image
Same model may have multiple batches, images only for reference.

74438335022

Part No 74438335022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.8A 108MOHM SMD
Datasheet
74438335022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MAPI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 108mOhm Max
Frequency - Self Resonant 45MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 3015
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857439-74438335022
Ultra Librarian 3D Model Ultra Librarian 74438335022 CAD Model

Description

The WE-MAPI series is a molded inductor designed for various applications.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Inductance: 2.2 µH
  • Maximum Seated Height: 0.059" (1.50mm)
  • DC Resistance (DCR): 108mOhm
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • Current Rating: 1.8A
  • Current Saturation (Isat): 3.5A
  • Manufacturer: Wurth Electronics Inc
  • Status: Active
