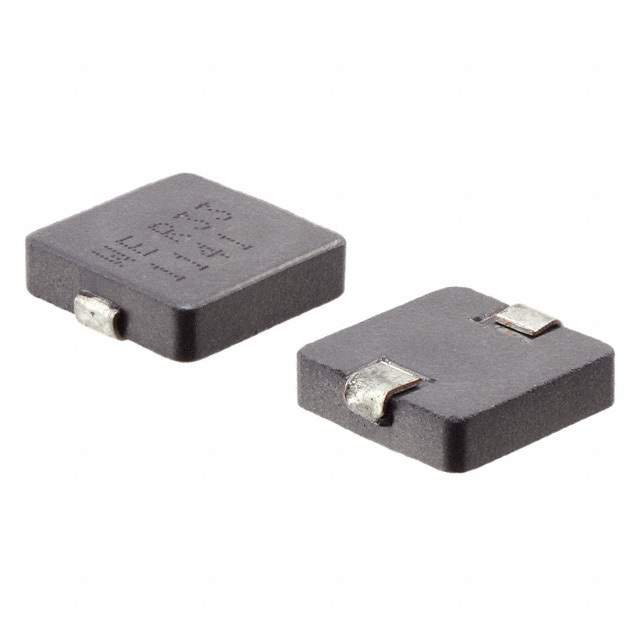

Same model may have multiple batches, images only for reference.

74437377010

Name: 74437377010
Brand: Wurth Electronics Inc
SKU: 1329258
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	74437377010
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 15A 3.5 MOHM SMD / 1 µH Shielded Molded Inductor 15 A 3.5mOhm Max Nonstandard
Datasheet	74437377010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Molded
Material - Core	Iron Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	15 A
Current - Saturation (Isat)	26A
Shielding	Shielded
DC Resistance (DCR)	3.5mOhm Max
Frequency - Self Resonant	41MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max)	0.138" (3.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-3397-6,732-3397-1,732-3397-2
Standard Package	500
Win Source Part Number	1329258-74437377010
Ultra Librarian 3D Model	Ultra Librarian 74437377010 CAD Model

Alternative Products

Description

The Würth Elektronik electronic component with the Win Source Part Number 1329258-74437377010 is a fixed inductor with a molded type and a shielding feature.

Size: 0.531" L x 0.496" W (13.50mm x 12.60mm)
Inductance: 1 µH
Seated Height: 0.138" (3.50mm)
Tolerance: ±20%
Material: Iron Powder
Frequency Self-Resonant: 41MHz
DC Resistance (DCR): 3.5mOhm Max
Temperature Range: -40°C ~ 125°C
