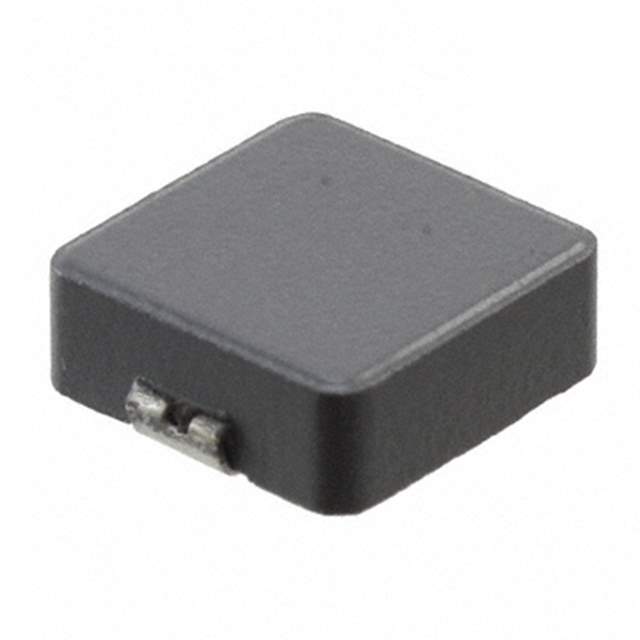

Same model may have multiple batches, images only for reference.

74437368470

Name: 74437368470
Brand: Wurth Electronics Inc
SKU: 1329013
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74437368470
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 47UH 2.2A 167 MOHM SMD / 47 µH Shielded Molded Inductor 2.2 A 167mOhm Max Nonstandard
Datasheet	74437368470 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Molded
Material - Core	Iron Powder
Inductance	47 µH
Tolerance	±20%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	4.5A
Shielding	Shielded
DC Resistance (DCR)	167mOhm Max
Frequency - Self Resonant	5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	1040
Size / Dimension	0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-11459-6,732-11459-2,732-11459-1
Standard Package	500
Win Source Part Number	1329013-74437368470
Ultra Librarian 3D Model	Ultra Librarian 74437368470 CAD Model

Alternative Products

Description

The Würth Elektronik 1329013-74437368470 is a fixed inductor that is designed to be used in various electronic devices and systems, including power supplies, inverters, and motor drives.

Shielding: Shielding
Size/Dimension: 0.453" L x 0.406" W (11.50mm x 10.30mm)
Inductance: 47 μH
Tolerance: ±20%
DC Resistance (DCR): 167mOhm Max
